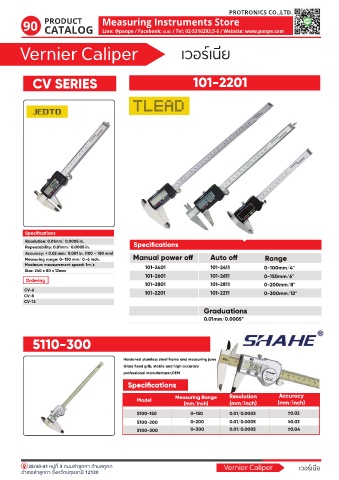

Page 99 - PONPE Catalogs 2022

PROTRONICS CO.,LTD.
90 Measuring Instruments Store
Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com

Vernier Caliper เวอร�เนีย

CV SERIES 101-2201

Specifications
Resolution: 0.01mm/ 0.0005 in. Specifications
Repeatability: 0.01mm/ 0.0005 in.
Accuracy: + 0.02 mm/ 0.001 in. (100 – 150 mm) Manual power o Auto o
Measuring range: 0–150 mm/ 0–6 inch. Range
Maximum measurement speed: 1m/s 101-2401 101-2411 0-100mm/4"
Size: 240 x 80 x 12mm
101-2601 101-2611 0-150mm/6"
Ordering
101-2801 101-2811 0-200mm/8"
CV-6 101-2201 101-2211
CV-8 0-300mm/12"
CV-12
Graduations
0.01mm/0.0005"

5110-300

Hardened stainless steel frame and measuring jaws
Glass fixed grib, stable and high accuracy
professional manufacturer,OEM
Specifications

Measuring Range Resolution Accuracy
Model
(mm/inch) (mm/inch) (mm/inch)
5100-150 0-150 0.01/0.0005 ±0.02
5100-200 0-200 0.01/0.0005 ±0.03
5100-300 0-300 0.01/0.0005 ±0.04

38/40-41 ËÁÙ‹·Õè 3 ¶¹¹ÅÓÅÙ¡¡Ò µÓºÅ¤Ù¤µ
ÍÓàÀÍÅÓÅÙ¡¡Ò ¨Ñ§ËÇÑ´»·ØÁ¸Ò¹Õ 12130 เวอร�เนีย
