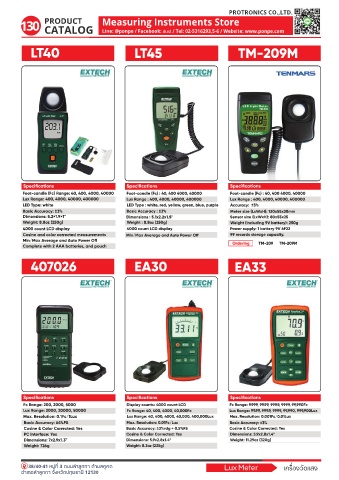

Page 139 - PONPE Catalogs 2022

PROTRONICS CO.,LTD.
130 Measuring Instruments Store
Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com

LT40 LT45 TM-209M

Specifications Specifications Specifications
Foot-candle (Fc) Range: 40, 400, 4000, 40000 Foot-candle (Fc) : 40, 400 4000, 40000 Foot-candle (Fc) : 40, 400 4000, 40000
Lux Range: 400, 4000, 40000, 400000 Lux Range : 400, 4000, 40000, 400000 Lux Range : 400, 4000, 40000, 400000
LED Type: white LED Type : white, red, yellow, green, blue, purple Accuracy: ±3%
Basic Accuracy: ±3% Basic Accuracy : ±3% Meter size (LxWxH): 130x55x38mm
Dimensions: 5.2×1.9×1" Dimensions : 5.1x2.2x1.5" Sensor size (LxWxH): 80x55x25
Weight: 8.8oz (250g) Weight : 8.8oz (250g) Weight (including 9V battery): 250g
4000 count LCD display 4000 count LCD display Power supply: 1 battery 9V 6F22
Cosine and color corrected measurements Min/Max Average and Auto Power O 99 records storage capacity.
Min/Max Average and Auto Power O Ordering TM-209 TM-209M
Complete with 2 AAA batteries, and pouch

407026 EA30 EA33

Specifications Specifications Specifications
Fc Range: 200, 2000, 5000 Display counts : 4000 count LCD Fc Range: 9.999, 99.99, 999.9, 9999, 99,990Fc
Lux Range: 2000, 20000, 50000 Fc Range: 40, 400, 4000, 40,000Fc Lux Range: 99.99, 999.9, 9999, 99,990, 999,900Lux
Max. Resolution: 0.1Fc/1Lux Lux Range: 40, 400, 4000, 40,000, 400,000Lux Max. Resolution: 0.001Fc/0.01Lux
Basic Accuracy: ±4%FS Max. Resolution: 0.01Fc/Lux Basic Accuracy: ±3%
Cosine & Color Corrected: Yes Basic Accuracy: ±3%rdg + 0.5%FS Cosine & Color Corrected: Yes
PC Interface: Yes Cosine & Color Corrected: Yes Dimensions: 5.9x2.8x1.4"
Dimensions: 7x2.9x1.3" Dimensions: 5.9x2.8x1.4" Weight: 11.29oz (320g)
Weight: 726g Weight: 8.3oz (235g)

38/40-41 ËÁÙ‹·Õè 3 ¶¹¹ÅÓÅÙ¡¡Ò µÓºÅ¤Ù¤µ
ÍÓàÀÍÅÓÅÙ¡¡Ò ¨Ñ§ËÇÑ´»·ØÁ¸Ò¹Õ 12130 เครื่องวัดแสง
