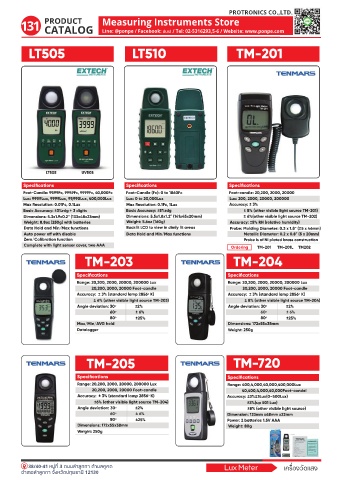

Page 140 - PONPE Catalogs 2022

PROTRONICS CO.,LTD.
131 Measuring Instruments Store
Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com

LT505 LT510 TM-201

LT505 UV505

Specifications Specifications Specifications
Foot-Candle: 99.99Fc, 999.9Fc, 9999Fc, 40,000Fc Foot-Candle (Fc): 0 to 1860Fc Foot-candle: 20,200, 2000, 20000
Lux: 999.9Lux, 9999Lux, 99,990Lux, 400,000Lux Lux: 0 to 20,000Lux Lux: 200, 2000, 20000, 200000
Max Resolution: 0.01Fc, 0.1Lux Max Resolution: 0.1Fc, 1Lux Accuracy: ± 3%
Basic Accuracy: ±3%rdg + 3 digits Basic Accuracy: ±5%rdg ± 8% (other visible light source TM-201)
Dimensions: 5.3x1.9x0.2" (133x48x23mm) Dimensions: 5.5x1.8x1.2" (141x45x20mm) ± 6%(other visible light source TM-202)
Weight: 8.8oz (250g) with batteries Weight: 5.6oz (160g) Accuracy: ±5% RH (relative humidity)
Data Hold and Min/Max functions Backlit LCD to view in dimly lit areas Probe: Molding Diameter: 0.3 x 1.8" (7.5 x 46mm)
Auto power o with disable Data Hold and Min/Max functions Metallic Diameter: 0.2 x 0.8" (5 x 20mm)
Zero/Calibration function Probe is of Ni plated brass construction
Complete with light sensor cover, two AAA
Ordering TM-201 TM-201L TM202
TM-203 TM-204

Specifications Specifications
Range: 20,200, 2000, 20000, 200000 Lux Range: 20,200, 2000, 20000, 200000 Lux
20,200, 2000, 20000 Foot-candle 20,200, 2000, 20000 Foot-candle
Accuracy: ± 3% (standard lamp 2856º K) Accuracy: ± 3% (standard lamp 2856º K)
± 6% (other visible light source TM-203) ± 8% (other visible light source TM-204)
Angle deviation: 30º ±2% Angle deviation: 30º ±2%
± 6%
60º ± 6% 60º ± 6%
60º
80º ±25% 80º ±25%
Max/Min/AVG hold Dimensions: 172x55x38mm
Datalogger Weight: 250g

TM-205 TM-720

Specifications Specifications
Range: 20,200, 2000, 20000, 200000 Lux Range: 400,4,000,40,000,400,000Lux
20,200, 2000, 20000 Foot-candle 40,400,4,000,40,000Foot-candel
Accuracy: ± 3% (standard lamp 2856º K) Accuracy: ±3%±3Lux(0~500Lux)
±6% (other visible light source TM-204) ±3%(up 501 Lux)
Angle deviation: 30º ±2% ±8% (other visible light source)
± 6%
60º
60º ± 6% Dimension: 133mm x48mm x23mm
80º ±25% Power: 2 batteries 1.5V AAA
Dimensions: 172x55x38mm Weight: 80g
Weight: 250g

38/40-41 ËÁÙ‹·Õè 3 ¶¹¹ÅÓÅÙ¡¡Ò µÓºÅ¤Ù¤µ
ÍÓàÀÍÅÓÅÙ¡¡Ò ¨Ñ§ËÇÑ´»·ØÁ¸Ò¹Õ 12130 เครื่องวัดแสง
