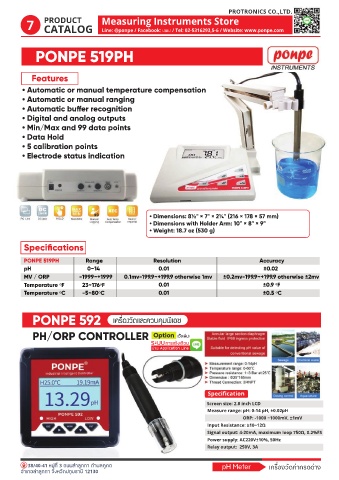

Page 16 - PONPE Catalogs 2022

PROTRONICS CO.,LTD.
7 Measuring Instruments Store
Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com

PONPE 519PH

Features

• Automatic or manual temperature compensation
• Automatic or manual ranging
• Automatic bu er recognition
• Digital and analog outputs
• Min/Max and 99 data points
• Data Hold
• 5 calibration points
• Electrode status indication

• Dimensions: 8½" × 7" × 2¼" (216 × 178 × 57 mm)
• Dimensions with Holder Arm: 10" × 8" × 9"
• Weight: 18.7 oz (530 g)

Specifications

PONPE 519PH Range Resolution Accuracy
pH 0~14 0.01 ±0.02
MV / ORP -1999~+1999 0.1mv-199.9~+199.9 otherwise 1mv ±0.2mv-199.9~+199.9 otherwise ±2mv
Temperature ºF 23~176ºF 0.01 ±0.9 ºF
Temperature ºC -5~80ºC 0.01 ±0.5 ºC

PONPE 592

PH/ORP CONTROLLER Option («×éÍà¾ÔèÁ)

Specification

Screen size: 2.8 inch LCD
Measure range: pH: 0-14 pH, ±0.02pH
ORP: -1000 ~1000mV, ±1mV
Input Resistance: ≥10~12Ω
Signal output: 4-20mA, maximum loop 750Ω, 0.2%FS
Power supply: AC220V±10%, 50Hz
Relay output: 250V, 3A

38/40-41 ËÁÙ‹·Õè 3 ¶¹¹ÅÓÅÙ¡¡Ò µÓºÅ¤Ù¤µ
ÍÓàÀÍÅÓÅÙ¡¡Ò ¨Ñ§ËÇÑ´»·ØÁ¸Ò¹Õ 12130 เครื่องวัดค�ากรดด�าง
