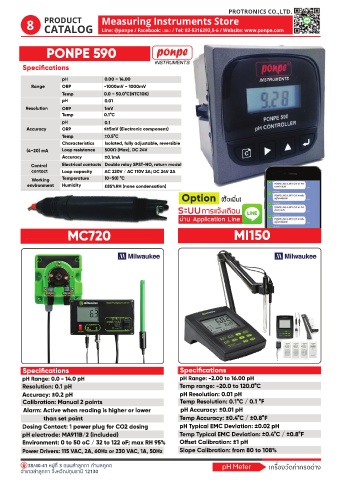

Page 17 - PONPE Catalogs 2022

PROTRONICS CO.,LTD.
8 Measuring Instruments Store
Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com

PONPE 590

Specifications

pH 0.00 ~ 14.00
Range ORP -1000mV ~ 1000mV
Temp 0.0 ~ 50.0°C(NTC10K)
pH 0.01
Resolution ORP 1mV
Temp 0.1°C
pH 0.1
Accuracy ORP ≤±5mV (Electronic component)
Temp ±0.5°C
Characteristics Isolated, fully adjustable, reversible
(4~20) mA Loop resistance 500¹ (Max), DC 24V
Accuracy ±0.1mA
Control Electrical contacts Double relay SPST-NO, return model
contact Loop capacity AC 220V / AC 110V 2A; DC 24V 2A
Working Temperature (0~50) °C
environment Humidity £85%RH (none condensation)

Option («×éÍà¾ÔèÁ)

M C7 20 MI150
MC720

Specifications Specifications
pH Range: 0.0 - 14.0 pH pH Range: -2.00 to 16.00 pH
Resolution: 0.1 pH Temp range: -20.0 to 120.0°C
Accuracy: ±0.2 pH pH Resolution: 0.01 pH
Calibration: Manual 2 points Temp Resolution: 0.1°C / 0.1 °F
Alarm: Active when reading is higher or lower pH Accuracy: ±0.01 pH
ORP: -1000 ~1000mV, ±1mV than set point Temp Accuracy: ±0.4°C / ±0.8°F
Dosing Contact: 1 power plug for CO2 dosing pH Typical EMC Deviation: ±0.02 pH
pH electrode: MA911B/2 (included) Temp Typical EMC Deviation: ±0.4°C / ±0.8°F
Environment: 0 to 50 oC / 32 to 122 oF; max RH 95% O set Calibration: ±1 pH
Power Drivers: 115 VAC, 2A, 60Hz or 230 VAC, 1A, 50Hz Slope Calibration: from 80 to 108%
