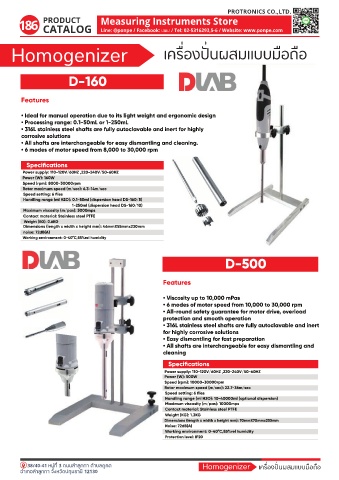

Page 195 - PONPE Catalogs 2022

PROTRONICS CO.,LTD.
186 Measuring Instruments Store
Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com

Homogenizer เครื่องป��นผสมแบบมือถือ

D-160

Features

• Ideal for manual operation due to its light weight and ergonomic design
• Processing range: 0.1-50mL or 1-250mL
• 316L stainless steel shafts are fully autoclavable and inert for highly
corrosive solutions
• All shafts are interchangeable for easy dismantling and cleaning.
• 6 modes of motor speed from 8,000 to 30,000 rpm

Specifications
Power supply: 110-120V/60HZ ,220-240V/50-60HZ
Power (W): 160W
Speed (rpm): 8000-30000rpm
Rotor maximum speed (m/sec): 6.3-14m/sec
Speed setting: 6 files
Handling range (ml H2O): 0.1-50ml (dispersion head DS-160/5)
1-250ml (dispersion head DS-160/10)
Maximum viscosity (m/pas): 5000mps
Contact material: Stainless steel PTFE
Weight (KG): 0.6KG
Dimensions (length x width x height mm): 46mmX55mmx230mm
noise: 72dB(A)
Working environment: 0-40°C,85%rel humidity

D-500

Features

• Viscosity up to 10,000 mPas
• 6 modes of motor speed from 10,000 to 30,000 rpm
• All-round safety guarantee for motor drive, overload
protection and smooth operation
• 316L stainless steel shafts are fully autoclavable and inert
for highly corrosive solutions
• Easy dismantling for fast preparation
• All shafts are interchangeable for easy dismantling and
cleaning

Specifications
Power supply: 110-120V/60HZ ,220-240V/50-60HZ
Power (W): 500W
Speed (rpm): 10000-30000rpm
Rotor maximum speed (m/sec): 22.7-36m/sec
Speed setting: 6 files
Handling range (ml H2O): 10-40000ml (optional dispersion)
Maximum viscosity (m/pas): 10000mps
Contact material: Stainless steel PTFE
Weight (KG): 1.3KG
Dimensions (length x width x height mm): 70mmX70mmx255mm
Noise: 72dB(A)
Working environment: 0-40°C,85%rel humidity
Protection level: IP20
