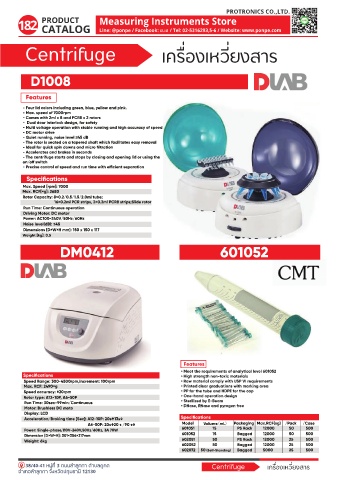

Page 191 - PONPE Catalogs 2022
P. 191

PROTRONICS CO.,LTD.
       182                          Measuring Instruments Store
                                    Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com



          Centrifuge                                      เครื่องเหวี่ยงสาร



            D1008


           Features

         - Four lid colors including green, blue, yellow and pink.
         - Max. speed of 7000rpm
         - Comes with 2ml x 8 and PCR8 x 2 rotors
         -  Dual door interlock design, for safety
         - Multi voltage operation with stable running and high accuracy of speed
         - DC motor drive
         - Quiet running, noise level ≤45 dB
         - The rotor is seated on a tapered shaft which facilitates easy removal
         - Ideal for quick spin downs and micro filtration
         - Accelerates and brakes in seconds
         - The centrifuge starts and stops by closing and opening lid or using the
         on/o  switch
         - Precise control of speed and run time with e cient separation
          Specifications
         Max. Speed [rpm]: 7000
         Max. RCF[×g]: 2680
         Rotor Capacity: 8×0.2/0.5/1.5/2.0ml tube;
                       16×0.2ml PCR strips, 2×0.2ml PCR8 strips;Slide rotor
         Run Time: Continuous operation
         Driving Motor: DC motor
         Power: AC100-240V/50Hz/60Hz
         Noise level(dB): ≤45
         Dimensions [D×W×H mm]: 150 x 150 x 117
         Weight [kg]: 0.5
                      DM0412                                                  601052
























                                                                   Features
                                                                 • Meet the requirements of analytical level 601052
         Specifications                                           • High strength non-toxic materials
         Speed Range: 300-4500rpm,increment: 100rpm              • Raw material comply with USP VI requirements
         Max. RCF: 2490×g                                        • Printed clear graduations with marking area
         Speed accuracy: ±20rpm                                  • PP for the tube and HDPE for the cap
         Rotor type: A12-10P, A6-50P                             • One-hand operation design
          Run Time: 30sec-99min/Continuous                       • Sterilized by E-Beam
          Motor: Brushless DC moto                               • DNase, RNase and pyrogen free
          Display: LCD
          Acceleration/Braking time [Sec]: A12-10P: 20s↑13s↓     Specifications
                                A6-50P: 20s↑20 s /90 s↓          Model  VolumeʢmLʣ  Packaging Max.RCF(xg)  /Pack  /Case
          Power: Single-phase,110V-240V,50Hz/60Hz, 3A 70W        601051     15      PS Rack   12000    50   500
          Dimension [D×W×H]: 301×354×217mm                       601052     15      Bagged   12000     50   500
          Weight: 6kg                                            602051     50      PS Rack  12000     25   500
                                                                 602052     50      Bagged   12000     25   500
                                                                 602072  50 (Self-Standing)  Bagged   5000  25  500

             38/40-41 ËÁÙ‹·Õè 3 ¶¹¹ÅÓÅÙ¡¡Ò µÓºÅ¤Ù¤µ
        ÍÓàÀÍÅÓÅÙ¡¡Ò ¨Ñ§ËÇÑ´»·ØÁ¸Ò¹Õ 12130                                                     เครื่องเหวี่ยงสาร
