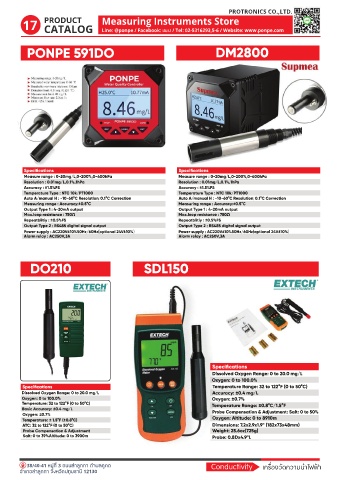

Page 26 - PONPE Catalogs 2022

PROTRONICS CO.,LTD.
17 Measuring Instruments Store
Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com

PONPE 591DO DM2800

Specifications Specifications
Measure range : 0-20mg/L,0-200%,0-400hPa Measure range : 0-20mg/L,0-200%,0-400hPa
Resolution : 0.01mg/L,0.1%,1hPa Resolution : 0.01mg/L,0.1%,1hPa
Accuracy : ±1.5%FS Accuracy : ±1.5%FS
Temperature Type : NTC 10k/PT1000 Temperature Type : NTC 10k/PT1000
Auto A/manual H : -10-60°C Resolution; 0.1°C Correction Auto A/manual H : -10-60°C Resolution; 0.1°C Correction
Measuring range : Accuracy:±0.5°C Measuring range : Accuracy:±0.5°C
Output Type 1 : 4-20mA output Output Type 1 : 4-20mA output
Max.loop resistance : 750 Max.loop resistance : 750
Repeatblitiy : ±0.5%FS Repeatblitiy : ±0.5%FS
Output Type 2 : RS485 digital signal output Output Type 2 : RS485 digital signal output
Power supply : AC220V±10%50Hz/60Hz(optional 24V±10%ʣ Power supply : AC220V±10%50Hz/60Hz(optional 24V±10%ʣ
Alarm relay : AC250V,3A Alarm relay : AC250V,3A

DO210 SDL150

Specifications
Dissolved Oxygen Range: 0 to 20.0 mg/L
Oxygen: 0 to 100.0%
Specifications Temperature Range: 32 to 122°F (0 to 50°C)
Dissolved Oxygen Range: 0 to 20.0 mg/L Accuracy: ±0.4 mg/L
Oxygen: 0 to 100.0% Oxygen: ±0.7%
Temperature: 32 to 122°F (0 to 50°C) Temperature Range: ±0.8°C/1.5°F
Basic Accuracy: ±0.4 mg/L Probe Compensation & Adjustment: Salt: 0 to 50%
Oxygen: ±0.7%
Temperature: ± 1.5°F (±0.8°C) Oxygen: Altitude: 0 to 8910m
ATC: 32 to 122°F (0 to 50°C) Dimensions: 7.2x2.9x1.9" (182x73x48mm)
Probe Compensation & Adjustment Weight: 25.6oz(725g)
Salt: 0 to 39%Altitude: 0 to 3900m Probe: 0.8Dx4.9"L

38/40-41 ËÁÙ‹·Õè 3 ¶¹¹ÅÓÅÙ¡¡Ò µÓºÅ¤Ù¤µ
ÍÓàÀÍÅÓÅÙ¡¡Ò ¨Ñ§ËÇÑ´»·ØÁ¸Ò¹Õ 12130 เครื่องวัดความนำไฟฟ�า
