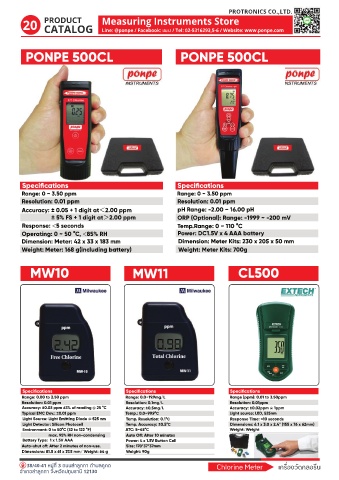

Page 29 - PONPE Catalogs 2022

PROTRONICS CO.,LTD.
20 Measuring Instruments Store
Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com

PONPE 500CL PONPE 500CL

Specifications Specifications
Range: 0 ~ 3.50 ppm Range: 0 ~ 3.50 ppm
Resolution: 0.01 ppm Resolution: 0.01 ppm
Accuracy: ± 0.05 + 1 digit atʻ2.00 ppm pH Range: -2.00 ~ 16.00 pH
± 5% FS + 1 digit atʼ2.00 ppm ORP (Optional): Range: -1999 ~ -200 mV
Response: 5 seconds Temp.Range: 0 ~ 110 °C
Operating: 0 ~ 50 °C, 85% RH Power: DC1.5V x 4 AAA battery
Dimension: Meter: 42 x 33 x 183 mm Dimension: Meter Kits: 230 x 205 x 50 mm
Weight: Meter: 168 g(including battery) Weight: Meter Kits: 700g

MW10 MW11 CL500

Specifications Specifications Specifications
Range: 0.00 to 2.50 ppm Range: 0.0~19.9mg/L Range (ppm): 0.01 to 3.50ppm
Resolution: 0.01 ppm Resolution: 0.1mg/L Resolution: 0.01ppm
Accuracy: ±0.03 ppm ±3% of reading @ 25 °C Accuracy: ±0.5mg/L Accuracy: ±0.02ppm @ 1ppm
Typical EMC Dev.: ±0.01 ppm Temp.: 0.0~99.9°C Light source: LED, 525nm
Light Source: Light Emitting Diode @ 525 nm Temp. Resolution: 0.1°C Response Time: <10 seconds
Light Detector: Silicon Photocell Temp. Accuracy: ±0.5°C Dimensions: 6.1 x 3.0 x 2.4" (155 x 76 x 62mm)
Environment: 0 to 50°C (32 to 122 °F) ATC: 5~45°C Weight: Weight
max. 95% RH non-condensing Auto O : After 10 minutes
Battery Type: 1 x 1.5V AAA Power: 4 x 1.5V Button Cell
Auto-shut o : After 2 minutes of non-use. Size: 170*37*37mm
Dimensions: 81.5 x 61 x 37.5 mm/ Weight: 64 g Weight: 90g

38/40-41 ËÁÙ‹·Õè 3 ¶¹¹ÅÓÅÙ¡¡Ò µÓºÅ¤Ù¤µ
ÍÓàÀÍÅÓÅÙ¡¡Ò ¨Ñ§ËÇÑ´»·ØÁ¸Ò¹Õ 12130 เครื่องวัดคลอรีน
