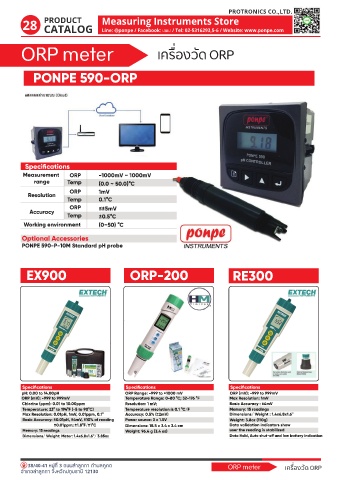

Page 37 - PONPE Catalogs 2022
P. 37

PROTRONICS CO.,LTD.
         28                          Measuring Instruments Store
                                     Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com



        ORP meter                                       เครื่องวัด ORP


             PONPE 590-ORP



















          Specifications
         Measurement     ORP        -1000mV ~ 1000mV
             range       Temp       (0.0 ~ 50.0)°C
                         ORP        1mV
           Resolution
                         Temp       0.1°C
                         ORP        ≤±5mV
           Accuracy
                         Temp       ±0.5°C
         Working environment        (0~50) °C

         Optional Accessories
         PONPE 590-P-10M Standard pH probe



          EX900                                ORP-2         00                    RE300
                                               ORP-200























         Specifications                       Spe c ific at ions                    Specifications
                                             Specifications
         pH: 0.00 to 14.00pH                 ORP R ange: -999 t o +1000 mV        ORP (mV): -999 to 999mV
                                             ORP Range: -999 to +1000 mV
         ORP (mV): -999 to 999mV             Temperature Range: 0-80 °C; 32-176 °F  Max Resolution: 1mV
         Chlorine (ppm): 0.01 to 10.00ppm    Resolution: 1 mV;                    Basic Accuracy : ±4mV
         Temperature: 23° to 194°F (-5 to 90°C)  Temperature resolution is 0.1 °C/F  Memory: 15 readings
         Max Resolution: 0.01pH, 1mV, 0.01ppm, 0.1°  Accuracy: 0.5% (±2mV)        Dimensions/ Weight : 1.4x6.8x1.6"
         Basic Accuracy: ±0.01pH, ±4mV, ±10% of reading  Power source: 3 x 1.5V   Weight: 3.8oz (110g)
                    ±0.01ppm; ±1.8°F/±1°C    Dimensions: 18.5 x 3.4 x 3.4 cm      Data validation indicators show
         Memory: 15 readings                 Weight: 96.4 g (3.4 oz)              user the reading is stabilized
         Dimensions/ Weight: Meter: 1.4x6.8x1.6"/ 3.85oz                          Data Hold, Auto shut-o  and low battery indication




              38/40-41 ËÁÙ‹·Õè 3 ¶¹¹ÅÓÅÙ¡¡Ò µÓºÅ¤Ù¤µ
         ÍÓàÀÍÅÓÅÙ¡¡Ò ¨Ñ§ËÇÑ´»·ØÁ¸Ò¹Õ 12130                                                          เครื่องวัด ORP
