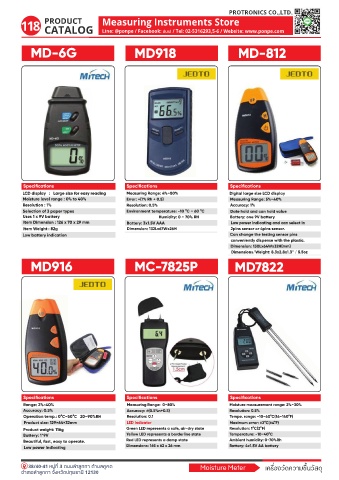

Page 121 - PONPE INSTRUMENTS

PROTRONICS CO.,LTD.

118 Measuring Instruments Store
Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com

MD-6G MD918 MD-812

Specifications Specifications Specifications
LCD display : Large size for easy reading Measuring Range: 4%~80% Digital large size LCD display
Moisture level range : 0% to 40% Error: +(1% Rh + 0.5) Measuring Range: 5%~40%
Resolution : 1% Resolution: 0.5% Accuracy: 1%
Selection of 3 paper types Environment temperature: -10 °C ~ 60 °C Date hold and can hold value
Uses 1 x 9V battery Humidity: 0 ~ 70% RH Battery: one 9V battery
Item Dimension : 126 x 70 x 29 mm Battery: 3x1.5V AAA Low power indicating and can select in
Item Weight : 82g Dimension: 132Lx67Wx26H 2pins sensor or 4pins sensor.
Low battery indication Can change the testing sensor pins
conveniently dispense with the plastic.
Dimension: 130Lx64Wx32H(mm)
Dimensions/Weight: 8.3x2.8x1.3" / 5.5oz
MD916 MC-7825P MD7822

Specifications Specifications Specifications
Range: 2%-40% Measuring Range: 0~80% Moisture measurement range: 2%~30%
Accuracy: 0.5% Accuracy: ±(0.5%n+0.5) Resolution: 0.5%
Operation temp.: 0°C~50°C 20~90%RH Resolution: 0.1 Tempe. range: -10~60°C(14~140°F)
Product size: 129×64×32mm LED Indicator Maximum error: ±2°C(±4°F)
Product weight: 116g Green LED represents a safe, air-dry state Resolution: 1°C(2°F)
Battery: 1*9V Yellow LED represents a borderline state Temperature: -10~40°C
Beautiful, fast, easy to operate. Red LED represents a damp state Ambient humidity: 0~70%Rh
Low power indicating Dimensions: 165 x 62 x 26 mm Battery: 4x1.5V AA battery

38/40-41 ËÁÙ‹·Õè 3 ¶¹¹ÅÓÅÙ¡¡Ò µÓºÅ¤Ù¤µ เครื่องวัดความชื้นวัสด ุ
ÍÓàÀÍÅÓÅÙ¡¡Ò ¨Ñ§ËÇÑ´»·ØÁ¸Ò¹Õ 12130
