PROTRONICS CO.,LTD.

        113                          Measuring Instruments Store
                                     Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com

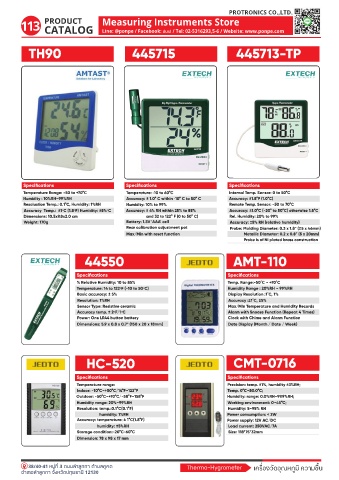

           TH90                                445715                               445713-TP




























         Specifications                       Specifications                       Specifications
         Temperature Range: -50 to +70°C     Temperature: ‐10 to 60°C            Internal Temp. Sensor: 0 to 50°C
         Humidity : 10%RH~99%RH              Accuracy: ± 1.0° C within ‐10° C to 50° C  Accuracy: ±1.8°F (1.0°C)
         Resolustion Temp.: 0.1°C, Humidity: 1%RH  Humidity: 10% to 99%           Remote Temp. Sensor: -50 to 70°C
         Accuracy  Temp.:  ±1ºC (1.8ºF) Humidity: ±5%ºC  Accuracy: ± 4% RH within 25% to 85%  Accuracy: ±1.0°C (-20° to 50°C) otherwise 1.5°C
         Dimensions: 10.5x9.8x2.0 cm                 and 32 to 122° F (0 to 50° C)  Rel. Humidity: 20% to 99%
         Weight: 170g                        Battery: 1.5V 'AAA' cell             Accuracy: ±5% RH (relative humidity)
                                             Rear calibration adjustment pot      Probe: Molding Diameter: 0.3 x 1.8" (7.5 x 46mm)
                                             Max/Min with reset function               Metallic Diameter: 0.2 x 0.8" (5 x 20mm)
                                                                                       Probe is of Ni plated brass construction


                               44550                                               AMT-110


                            Specifications                                        Specifications
                            % Relative Humidity: 10 to 85%                       Temp. Range:-50˚C ~ +70˚C
                            Temperature: 14 to 122ºF (-10 to 50ºC)               Humidity Range : 20%RH ~ 99%RH
                            Basic accuracy: ± 5%                                 Display Resolution :1˚C, 1%
                            Resolution: 1%RH                                     Accuracy :±1˚C, ±5%
                            Sensor Type: Resistive ceramic                       Max/Min Temperature and Humidity Records
                            Accuracy temp. ± 2ºF/1ºC                             Alarm with Snooze Function (Repeat 4 Times)
                            Power: One LR44 button battery                       Clock with Chime and Alarm Function
                            Dimensions: 5.9 x 0.8 x 0.7" (150 x 20 x 18mm)       Date Display (Month / Date / Week)





                               HC-520                                              CMT-0716


                            Specifications                                        Specifications
                            Temperature range:                                    Precision: temp. ±1%, humidity ±3%RH;
                            Indoor: -10°C~+50°C/14°F~122°F                       Temp. 0°C~80.0°C;
                            Outdoor: -50°C~+70°C/-58°F~158°F                     Humidity: range: 0.0%RH~99.9%RH;
                            Humidity range: 20%~99%RH                            Working environment: 0~45°C;
                            Resolution: temp.:0.1°C(0.1°F)                       Humidity: 5~95% RH
                                    humidity: 1%RH                               Power consumption: < 2W
                            Accuracy: temperature: ± 1°C(1.8°F)                  Power supply: 12V AC/DC
                                   humidity: ±5%RH                               Load current: 250VAC/7A
                            Storage condition:-20°C-60°C                         Size: 118*75*32mm
                            Dimension: 78 x 98 x 17 mm
