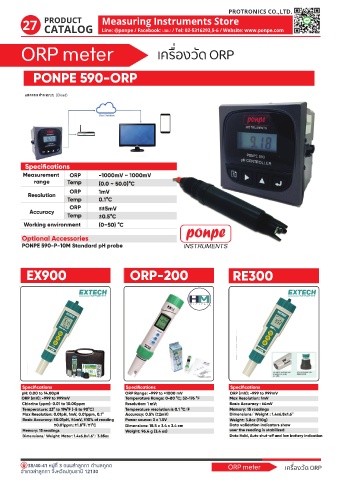

Page 30 - PONPE INSTRUMENTS

PROTRONICS CO.,LTD.
27 Measuring Instruments Store
Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com

ORP meter เครื่องวัด ORP

PONPE 590-ORP

Specifications
Measurement ORP -1000mV ~ 1000mV
range Temp (0.0 ~ 50.0)°C
ORP 1mV
Resolution
Temp 0.1°C
ORP ≤±5mV
Accuracy
Temp ±0.5°C
Working environment (0~50) °C

Optional Accessories
PONPE 590-P-10M Standard pH probe

EX900 ORP-200 RE300

Specifications Specifications Specifications
pH: 0.00 to 14.00pH ORP Range: -999 to +1000 mV ORP (mV): -999 to 999mV
ORP (mV): -999 to 999mV Temperature Range: 0-80 °C; 32-176 °F Max Resolution: 1mV
Chlorine (ppm): 0.01 to 10.00ppm Resolution: 1 mV; Basic Accuracy : ±4mV
Temperature: 23° to 194°F (-5 to 90°C) Temperature resolution is 0.1 °C/F Memory: 15 readings
Max Resolution: 0.01pH, 1mV, 0.01ppm, 0.1° Accuracy: 0.5% (±2mV) Dimensions/ Weight : 1.4x6.8x1.6"
Basic Accuracy: ±0.01pH, ±4mV, ±10% of reading Power source: 3 x 1.5V Weight: 3.8oz (110g)
±0.01ppm; ±1.8°F/±1°C Dimensions: 18.5 x 3.4 x 3.4 cm Data validation indicators show
Memory: 15 readings Weight: 96.4 g (3.4 oz) user the reading is stabilized
Dimensions/ Weight: Meter: 1.4x6.8x1.6"/ 3.85oz Data Hold, Auto shut-o and low battery indication

38/40-41 ËÁÙ‹·Õè 3 ¶¹¹ÅÓÅÙ¡¡Ò µÓºÅ¤Ù¤µ
ÍÓàÀÍÅÓÅÙ¡¡Ò ¨Ñ§ËÇÑ´»·ØÁ¸Ò¹Õ 12130 เครื่องวัด ORP
