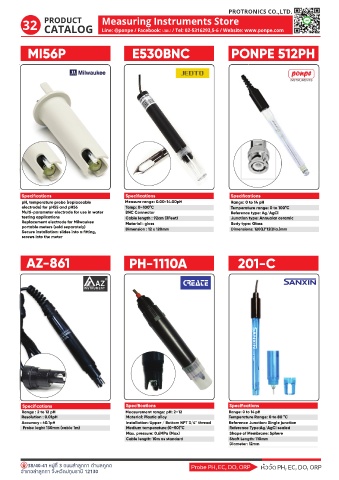

Page 35 - PONPE INSTRUMENTS

PROTRONICS CO.,LTD.
32 Measuring Instruments Store
Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com

MI56P E530BNC PONPE 512PH

Specifications Specifications Specifications
pH, temperature probe (replaceable Measure range: 0.00-14.00pH Range: 0 to 14 pH
electrode) for pH55 and pH56 Temp: 0~100°C Temperature range: 0 to 100°C
Multi-parameter electrode for use in water BNC Connector Reference type: Ag/AgCl
testing applications Cable length : 92cm (3Feet) Junction type: Annualar ceramic
Replacement electrode for Milwaukee Material : glass Body type: Glass
portable meters (sold separately) Dimension : 12 x 120mm Dimensions: 120(L)*12(Dia.)mm
Secure installation: slides into a fitting,
screws into the meter

AZ-861 PH-1110A 201-C

Specifications Specifications Specifications
Range : 2 to 12 pH Measurement range: pH: 2~12 Range: 0 to 14 pH
Resolution : 0.01pH Material: Plastic alloy Temperature Range: 0 to 80 °C
Accuracy : ±0.1pH Installation: Upper / Bottom NPT 3/4" thread Reference Junction: Single junction
Probe leght 130mm (cable 1m) Medium temperature:(0~50)°C Reference Type:Ag/AgCl sealed
Max. pressure: 0.6MPa (Max) Shape of Membrane: Sphere
Cable length: 10m as standard Shaft Length: 110mm
Diameter: 12mm

38/40-41 ËÁÙ‹·Õè 3 ¶¹¹ÅÓÅÙ¡¡Ò µÓºÅ¤Ù¤µ
ÍÓàÀÍÅÓÅÙ¡¡Ò ¨Ñ§ËÇÑ´»·ØÁ¸Ò¹Õ 12130 หัววัด PH, EC, DO, ORP
