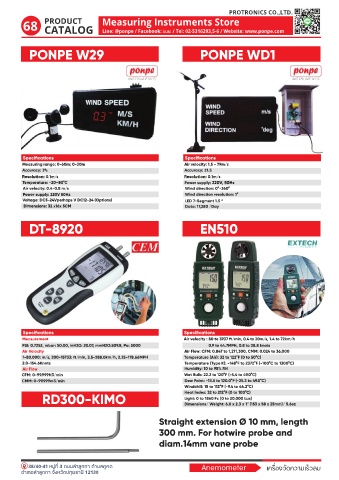

Page 71 - PONPE INSTRUMENTS

PROTRONICS CO.,LTD.

68 Measuring Instruments Store
Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com

PONPE W29 PONPE WD1

Specifications Specifications
Measuring range: 0-60m; 0-30m Air velocity: 1.5 - 79m/s
Accuracy: 3% Accuracy: ±1.5
Resolution: 0.1m/s Resolution: 0.1m/s
Temperature: -20~80°C Power supply: 220V, 50Hz
Air velocity: 0.4-0.8 m/s Wind direction: 0°-360°
Power supply: 220V 50Hz Wind direction resolution: 1°
Voltage: DC5-24Vperhaps V DC12-24 (Options) LED 7-Segment 1.5 “
Dimensions: 32 x16x 5CM Data: 17,280 /Day

DT-8920 EN510

Specifications
Specifications Specifications
Measurement Air velocity : 80 to 3937 ft/min, 0.4 to 20m/s, 1.4 to 72km/h
PSI: 0.7252, mbar: 50.00, inH2O: 20.07, mmH2O:509.8, Pa: 5000 0.9 to 44.7MPH, 0.8 to 38.8 knots
Air Velocity Air Flow: CFM: 0.847 to 1,271,300, CMM: 0.024 to 36,000
1-80.000: m/s, 200-15733: ft/min, 3.5-288.0km/h, 2.25-178.66MPH Temperature (Air): 32 to 122°F (0 to 50°C)
2.0-154.6Knots Temperature (Type K): -148°F to 2372°F (-100°C to 1300°C)
Air Flow Humidity: 10 to 95% RH
CFM: 0-99.999ft3/min Wet Bulb: 22.2 to 120°F (-5.4 to 49.0°C)
CMM: 0-99.999m3/min Dew Point: -13.5 to 120.0°F (-25.3 to 49.0°C)
Windchill: 15 to 112°F (-9.4 to 44.2°C)
Heat Index: 32 to 212°F (0 to 100°C)
RD300-KIMO Light: 0 to 1860 Fc (0 to 20,000 Lux)
Dimensions/ Weight: 6.0 x 2.3 x 1" (153 x 58 x 25mm)/ 5.6oz

Straight extension Ø 10 mm, length
300 mm. For hotwire probe and
diam.14mm vane probe

38/40-41 ËÁÙ‹·Õè 3 ¶¹¹ÅÓÅÙ¡¡Ò µÓºÅ¤Ù¤µ
เครื่องวัดความเร็วลม เครื่องวัดความเร็วลม
ÍÓàÀÍÅÓÅÙ¡¡Ò ¨Ñ§ËÇÑ´»·ØÁ¸Ò¹Õ 12130
