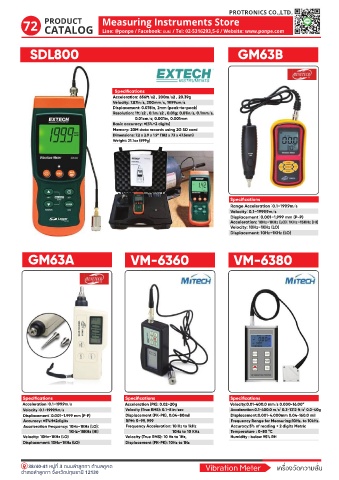

Page 75 - PONPE INSTRUMENTS

PROTRONICS CO.,LTD.

72 Measuring Instruments Store
Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com

SDL800 GM63B

Specifications
Acceleration: 656ft/s2 , 200m/s2 , 20.39g
Velocity: 7.87in/s, 200mm/s, 19.99cm/s
Displacement: 0.078in, 2mm (peak-to-peak)
Resolution: 1ft/s2 , 0.1m/s2 , 0.01g; 0.01in/s, 0.1mm/s,
0.01cm/s; 0.001in, 0.001mm
Basic accuracy: ±(5%+2 digits)
Memory: 20M data records using 2G SD card
Dimensions: 7.2 x 2.9 x 1.9" (182 x 73 x 47.5mm)
Weight: 21.1oz (599g)

Specifications
Range Accelerationɿ0.1~199.9m/s
Velocityɿ0.1~1999.9m/s
Displacementɿ0.001~1.999 mm (P-P)
Acceleration: 10Hz~1KHz (LO)ʀ1KHz~15KHz (HI)
Velocity: 10Hz~1KHz (LO)
Displacement: 10Hz~1KHz (LO)

GM63A VM-6360 VM-6380

Specifications Specifications Specifications
Accelerationɿ0.1~199.9m/s Acceleration (PK): 0.02~20g Velocity:0.01-400.0 mm/s 0.000-16.00”
Velocityɿ0.1~1999.9m/s Velocity (True RMS): 0.1~8 in/sec Acceleration:0.1-400.0 m/s² 0.3-1312 ft/s² 0.0-40g
Displacementɿ0.001~1.999 mm (P P) Displacement (PK-PK), 0.04~80mil Displacement:0.001-4.000mm 0.04-160.0 mil
Accuracy: ±5%H±2digits RPM: 5~99, 999 Frequency Range for Measuring:10Hz. to 10kHz.
Acceleration frequency: 10Hz~1KHz (LO)ʀ Frequency Acceleration: 10 Hz to 1kHz Accuracy:5% of reading + 2 digits Metric
1KHz~15KHz (HI) 10Hz to 10 KHz Temperature : 0-50 °C
Velocity: 10Hz~1KHz (LO) Velocity (True RMS): 10 Hz to 1Hz, Humidity : below 95% RH
Displacement: 10Hz~1KHz (LO) Displacement (PK-PK): 10Hz to 1Hz
