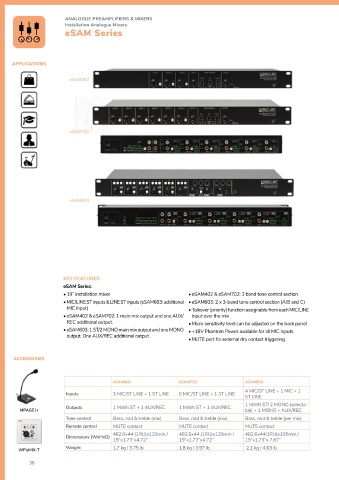

Page 36 - Midwich_ AU_Ecler_Audio_Product_Guide_2021

ANALOGUE PREAMPLIFIERS & MIXERS ANALOGUE PREAMPLIFIERS & MIXERS
Installation Analogue Mixers Installation Analogue Mixers
eSAM Series SAM Series

APPLICATIONS APPLICATIONS

eSAM402

eSAM702
SAM412T

SAM612T
eSAM603

KEY FEATURES • KEY FEATURES • Three-band tone controls for each channel, accessible
eSAM Series: • SAM Series: with a screwdriver
• 19” installation mixer • eSAM402 & eSAM702: 3 band tone control section • 4 (SAM412T) / 6 (SAM612T) input channels, 2 main outputs • Vu-meter for the mix signal (SAM412T)
• MIC/LINE ST inputs & LINE ST inputs (eSAM603: additional • eSAM603: 2 x 3-band tone control section (A/B and C) 19” installation mixers • 1 ST main output
MIC input) • Talkover (priority) function assignable from each MIC/LINE • Micro sensitivity level can be adjusted on the back panel • AUX/REC output
• eSAM402 & eSAM702: 1 main mix output and one AUX/ input over the mix • +18V Phantom Power available in all “MIC” inputs • Direct access to the mixing bus
REC additional output. • Micro sensitivity level can be adjusted on the back panel • Direct micro input on front panel, channel 1 • Remote MUTE control
• eSAM603: 1 ST/2 MONO main mix output and one MONO • +18V Phantom Power available for all MIC inputs • Includes a talkover assigned to MIC/LINE 1 • Mono/stereo switch
output. One AUX/REC additional output • MUTE port for external dry contact triggering
•
•
ACCESSORIES ACCESSORIES

eSAM402 eSAM702 eSAM603
4 MIC/ST LINE + 1 MIC + 1
Inputs 3 MIC/ST LINE + 1 ST LINE 6 MIC/ST LINE + 1 ST LINE
ST LINE
SAM412T SAM612T
1 MAIN ST/ 2 MONO (selecta-
Outputs 1 MAIN ST + 1 AUX/REC 1 MAIN ST + 1 AUX/REC Inputs 4 MIC/ST LINE + 1 ST MIX 6 MIC/ST LINE + 1 ST MIX
MPAGE1r ble) + 1 MONO + AUX/REC MPAGE1r
Tone control Bass, mid & treble (mix) Bass, mid & treble (mix) Bass, mid & treble (per mix) Outputs 2 MAIN ST + 1 REC 1 MAIN ST + 1 AUX/REC
Remote control MUTE contact MUTE contact MUTE contact Tone control Bass, mid & treble (per input) Bass, mid & treble (per input)
482,6x44 (1RU)x120mm / 482,6x44 (1RU)x120mm / 482,6x44(1RU)x195mm / Remote control MUTE contact MUTE contact
Dimensions (WxHxD)
19”x1.73”x4.72” 19”x1.73”x4.72” 19”x1.73”x 7.67” Dimensions (WxHxD) 482,6x44(1RU)x195mm / 19”x1.73”x 7.67” 482,6x44(1RU)x195mm / 19”x1.73”x 7.67”
WPaMIX-T Weight 1,7 kg / 3.75 lb 1,8 kg / 3.97 lb 2,1 kg / 4.63 lb Weight 2,4 kg / 5.29 lb 2,0 kg / 4.41 lb WPaMIX-T
