DIGITAL MATRIXES AND PROCESSORS DIGITAL MATRIXES AND PROCESSORS
Dante™ Digital Matrix

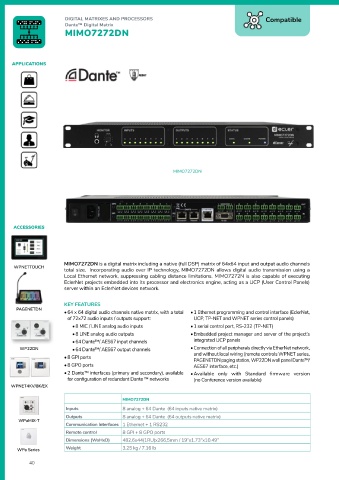

MIMO7272DN MIMO7272DN

APPLICATIONS APPLICATIONS

MIMO7272DN

MIMO7272DN

ACCESSORIES

EclerNet Manager

MIMO7272DN is a digital matrix including a native (full DSP) matrix of 64x64 input and output audio channels
WPNETTOUCH
total size. Incorporating audio over IP technology, MIMO7272DN allows digital audio transmission using a
Local Ethernet network, suppressing cabling distance limitations. MIMO7272N is also capable of executing
EclerNet projects embedded into its processor and electronics engine, acting as a UCP (User Control Panels)
server within an EclerNet devices network.

KEY FEATURES •
PAGENETDN WP22DN WPNETTOUCH
• 64 x 64 digital audio channels native matrix, with a total • 1 Ethernet programming and control interface (EclerNet,
of 72x72 audio inputs / outputs support: UCP, TP-NET and WPNET series control panels)
• 8 MIC / LINE analog audio inputs • 1 serial control port, RS-232 (TP-NET)
• 8 LINE analog audio outputs • Embedded project manager and server of the project’s MIMO7272DN
• 64 Dante™/ AES67 input channels integrated UCP panels
WP22DN • 64 Dante™/ AES67 output channels • Connection of all peripherals directly via EtherNet network,
• 8 GPI ports and without local wiring (remote controls WPNET series, WPNETEX
PAGENETDN paging station, WP22DN wall panel Dante™/
• 8 GPO ports AES67 interface, etc.) eGPA8-150
• 2 Dante™ interfaces (primary and secondary), available • Available only with Standard firmware version
for configuration of redundant Dante ™ networks (no Conference version available)
WPNET4KV/8K/EX

MIMO7272DN WPNET8K WPNET4KV
Inputs 8 analog + 64 Dante (64 inputs native matrix)
Outputs 8 analog + 64 Dante (64 outputs native matrix)
WPaMIX-T
Communication Interfaces 1 Ethernet + 1 RS232 IC6 eMOTUS50D eAMBIT series
Remote control 8 GPI + 8 GPO ports
Dimensions (WxHxD) 482,6x44(1RU)x266,5mm / 19”x1.73”x10.49”
WPa Series Weight 3,25 kg / 7.16 lb
