DIGITAL MATRIXES AND PROCESSORS DIGITAL MATRIXES AND PROCESSORS
Powered Digital Audio Managers

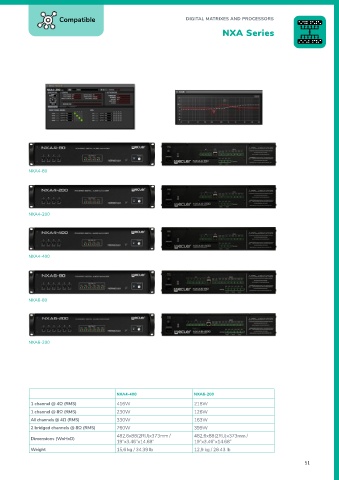

NXA Series NXA Series

APPLICATIONS
NXA4-400

NXA4-80

NXA6-200

NXA4-200

NXA4-400
NXA is a series of a powered digital audio managers that stays halfway between a digital matrix and
a multichannel amplifier. An "all-in-one" digital audio device that becomes a complete audio solution.

KEY FEATURES • Integrated DSP processor. Main features:
• NXA4-80 / NXA4-200 / NXA4-400 models: 4 analogue • Inputs mixer independent per channel (all inputs NXA6-80
audio inputs x 4 powered audio outputs (80/200/400 W available)
per channel, respectively). 4 GPI ports • VOLUME, MUTE, SOLO, PHASE INVERSION, MAX.
• NXA6-80 / NXA6-200 models: 6 analogue audio inputs VOL limit and MIN.VOL limit, LP and HP Crossover
x 6 powered audio outputs (80/200 W per channel, filters, parametric EQ filters bank, Ducker, Delay,
respectively). 6 GPI ports Compressor and more settings configurable per channel.
• Class D amplifiers (eco friendly) • Ethernet interface, compatible with EclerNet Manager
ACCESSORIES • Auto stand-by function (eco friendly) platform and UCP remote control system NXA6-200
• 100% silent (fanless convection cooling system) • RS232 Interface
• Health self-test mode function, with FAULT RELAY (for an • TP-NET third-party remote control (compatible with
®
®
®
®
external redundancy system) CRESTRON , AMX , RTI , VITY , etc.)
• Integrated anti-clip system
WPNETTOUCH
NXA4-80 NXA4-200 NXA4-400 NXA6-200
1 channel @ 4Ω (RMS) 85W 202W 1 channel @ 4Ω (RMS) 416W 218W
1 channel @ 8Ω (RMS) 51W 121W 1 channel @ 8Ω (RMS) 230W 126W
WPNET4KV/8K All channels @ 4Ω (RMS) 66W 168W All channels @ 4Ω (RMS) 330W 163W
2 bridged channels @ 8Ω (RMS) 160W 383W 2 bridged channels @ 8Ω (RMS) 760W 399W
482,6x88(2RU)x373mm / 482,6x88(2RU)x373mm / 482,6x88(2RU)x373mm / 482,6x88(2RU)x373mm /
Dimensions (WxHxD) Dimensions (WxHxD)
19”x3.46”x14.68” 19”x3.46”x14.68” 19”x3.46”x14.68” 19”x3.46”x14.68”
WPa Series Weight 8,6 kg / 18.96 lb 11,1 kg / 24.47 lb Weight 15,6 kg / 34.39 lb 12,9 kg / 28.43 lb
