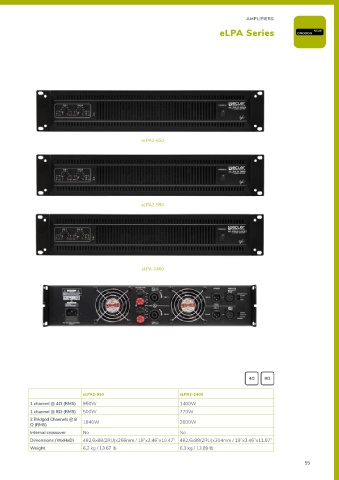

Page 55 - Midwich_ AU_Ecler_Audio_Product_Guide_2021

AMPLIFIERS AMPLIFIERS
Stereo Amplifiers
eLPA Series eLPA Series

APPLICATIONS

eLPA2-650
eLPA2-350

eLPA2-950

eLPA-1400

eLPA is a stereo amplifier series delivering 350/650/950/1400 W. eLPA series brings all the classic, well-known
reliability and amplification quality of ECLER to a new light-weight format that is versatile and affordable.

KEY FEATURES •
• 2 analogue audio inputs x 2 powered audio outputs • Efficient short-circuit, overheat and DC signal protection
• Ultra light technology system
• Built-in crossover filter (eLPA2-350) • Permanently activated built-in anti-clip circuit
• Efficient progressive ventilation system • Balanced inputs via XLR3 connectors. In addition, eLPA2-
• Rotary input attenuation controls that are easily accessible 350 model includes Jack 6,35mm and RCA inputs.
on the front panel • Amplified outputs with terminal-type connectors and
®
• POWER ON, SIGNAL, CLIP y PROTECT LED indicators Speakon connectors

eLPA2-350 eLPA2-650 eLPA2-950 eLPA2-1400
1 channel @ 4Ω (RMS) 345W 630W 1 channel @ 4Ω (RMS) 950W 1400W
1 channel @ 8Ω (RMS) 200W 340W 1 channel @ 8Ω (RMS) 500W 770W
2 Bridged Channels @ 8 560W 1220W 2 Bridged Channels @ 8 1840W 2600W
Ω (RMS) Ω (RMS)
Internal crossover Yes No Internal crossover No No
Dimensions (WxHxD) 482,6x88(2RU)x266mm / 19”x3.46”x10.47” 482,6x88(2RU)x266mm / 19”x3.46”x10.47” Dimensions (WxHxD) 482,6x88(2RU)x266mm / 19”x3.46”x10.47” 482,6x88(2RU)x304mm / 19”x3.46”x11.97”
Weight 5,5 kg / 12.12 lb 6,0 kg / 13.23 lb Weight 6,2 kg / 13.67 lb 6,3 kg / 13.89 lb
