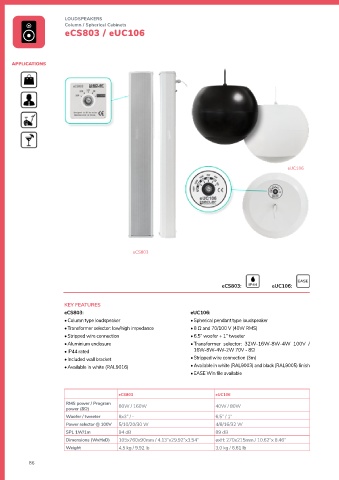

Page 86 - Midwich_ AU_Ecler_Audio_Product_Guide_2021

LOUDSPEAKERS LOUDSPEAKERS
Column / Spherical Cabinets In-ground Cabinets
eCS803 / eUC106 IG108 / eRK108

APPLICATIONS APPLICATIONS
IG108
waterproof connector
(IP65 rated)

eUC106

IG108
with security ground bracket

eRK108
eCS803 IG108
security ground bracket (included)

eCS803: eUC106:

KEY FEATURES • KEY FEATURES
eCS803: eUC106: IG108: eRK108:
• Column type loudspeaker • Spherical pendant type loudspeaker • IP65 outdoor rated loudspeaker • IP65 outdoor rated loudspeaker
• Transformer selector: low/high impedance • 8 Ω and 70/100 V (40W RMS) • 8 Ω and 70/100 V (7,5, 15, 30 or 60 W tap switch) • 70/100 V (15 W)
• Stripped wire connection • 6.5” woofer + 1” tweeter • 8” Kevlar woofer and 1” ACCW silk dome tweeter • 8” woofer + 0,5” tweeter
• Aluminium enclosure • Transformer selector: 32W-16W-8W-4W 100V / • Frequency response (-10 dB): 50 Hz to 23 kHz • Stripped wire connection
• IP44 rated 16W-8W-4W-2W 70V - 8Ω • Omni directional horizontal coverage pattern (a circular area • EASE Win file available
• Included wall bracket • Stripped wire connection (3m) with an average radius of 4 to 6 meters can be covered by
• Available in white (RAL9016) • Available in white (RAL9003) and black (RAL9005) finish one unit, in a standard application)
• • EASE Win file available • Security ground bracket included
• EASE Win file available

•
eCS803 eUC106 IG108 eRK108
RMS power / Program 80W / 160W 40W / 80W RMS power / Program
power (8Ω) power (8Ω) 100W / 200W -
Woofer / tweeter 8x3” / - 6,5” / 1” Woofer / tweeter 8” / 1” 8” / -
Power selector @ 100V 5/10/20/30 W 4/8/16/32 W Power selector @ 100V 7,5/15/30/60 W 15 W
SPL 1W/1m 94 dB 89 dB SPL 1W/1m 92 dB 89 dB
Dimensions (WxHxD) 105x760x90mm / 4.13”x29.92”x3.54” øxH: 270x215mm / 10.62”x 8.46” Dimensions (WxHxD) øxH: 360x392,5mm / 14.17”x15.45” 325x290x270mm / 12.79”x11.41”x10.63”
Weight 4,5 kg / 9,92 lb 3,0 kg / 6.61 lb Weight 8,5 kg / 18.74 lb 5,0 kg / 11.02 lb
