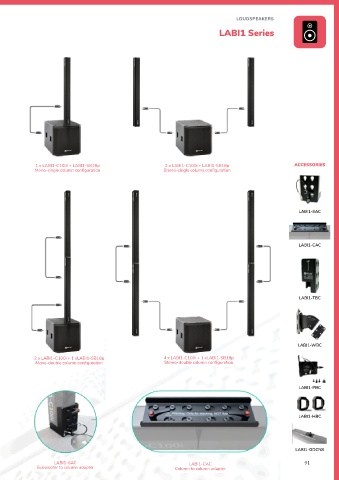

P. 91
LOUDSPEAKERS LOUDSPEAKERS
Compact PA Systems
LABI1 Series LABI1 Series
APPLICATIONS
LABI1-SB18 side
1 x LABI1-C100i + LABI1-SB18p 2 x LABI1-C100i + LABI1-SB18p ACCESSORIES
Mono-single column configuration Stereo-single column configuration
LABI1-C100i LABI1-SB18 front LABI1-SB18 back LABI1-SB18p back
LABI1-SAC
ECLER LABI1 SERIES has been specially designed to provide a compact loudspeakers system solution for
mobile and fixed installations in environments in need of high output, easy and quick installation, and excellent
sound quality. The variety of products and accessories allows several different configurations, depending on LABI1-CAC
the needs required.
KEY FEATURES •
LABI1-SB18: LABI1-C100i:
• 18” passive subwoofer with a compact design • Full-range passive 100cm loudspeaker column
• Frequency range (-10dB): 38Hz – 250Hz • Twelve 3” drivers with 0.75” neodymium voice coil
ACCESSORIES
• • 300W AES LABI1-TBC
LABI1-SB18p: • Speakon and 2-pin Euroblock input connectors
®
• 18” powered subwoofer with a compact design (+LINK connectors)
• 2400W built-in Class D amplification power • Several mounting options
• Low frequency amplifier: 1200W • Ready for outdoor applications
• Speaker output amplifier: 2x600W@4Ω •
LABI1-SWK • 18 factory presets LABI1-WBC
• User control interface with LCD • Black finish available (RAL 9005)
• 2 x LABI1-C100i + 1 xLABI1-SB18p 4 x LABI1-C100i + 1 xLABI1-SB18p
Mono-double column configuration Stereo-double column configuration
LABI1-SB18 LABI1-SB18P LABI1-C100i
RMS power / Program 500W / 1200W 2400W Class D built in amp 300W / 600W
power LABI1-PBC
LABI1-SPC 18” subwoofer with 3” 18” subwoofer with 3” 12x3” speaker with 0.75”
Speaker type
voice coil voice coil voice coil
Speakon® and 2-pin
XLR / XLR + Speakon
®
Inputs / Outputs Speakon / Speakon ® Euroblock input connectors
®
(powered output) LABI1-HBC
(+LINK connectors)
Max SPL @ 1m 131 dB 131 dB 127 dB
513 x 513 x 704 mm / 514 x 513 x 704 mm / 89 x 1000 x 117mm /
Dimensions (WxHxD)
20.2” x 20.2” x 27.7” 20.2” x 20.2” x 27.7” 3.5”x 39.4” x 4.6”
LABI1-CFC Weight 37.1 kg / 81.8 lb 39.1 kg / 86.2 lb 7.8 kg / 17.2 lb LABI1-ODCNX
90 LABI1-SAC LABI1-CAC 91
91
Subwoofer to column adapter Column to column adapter
