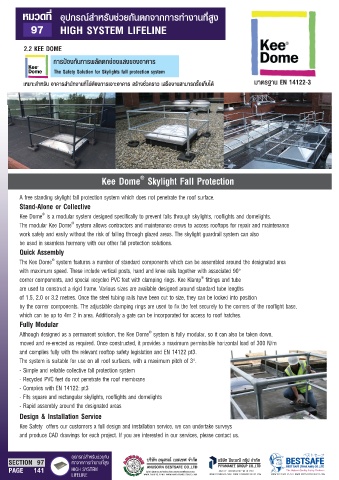

Page 156 - Sec 97

หมวดที่ อุปกรณสำหรับชวยกันตกจากการทำงานที่สูง

97 HIGH SYSTEM LIFELINE

2.2 KEE DOME
การปองกันการพลัดตกชองแสงของอาคาร

The Safety Solution for Skylights fall protection system
เหมาะสำหรับ อาคารสำนักงานที่ไมตองการเจาะอาคาร สรางชั่วคราว เสร็จงานสามารถรื้อเก็บได มาตรฐาน EN 14122-3

Kee Dome Skylight Fall Protection
®

A free standing skylight fall protection system which does not penetrate the roof surface.
Stand-Alone or Collective
®
Kee Dome is a modular system designed specifically to prevent falls through skylights, rooflights and domelights.
®
The modular Kee Dome system allows contractors and maintenance crews to access rooftops for repair and maintenance
work safely and easily without the risk of falling through glazed areas. The skylight guardrail system can also
be used in seamless harmony with our other fall protection solutions.
Quick Assembly
The Kee Dome system features a number of standard components which can be assembled around the designated area
®
with maximum speed. These include vertical posts, hand and knee rails together with associated 90°
®
corner components, and special recycled PVC feet with clamping rings. Kee Klamp fittings and tube
are used to construct a rigid frame. Various sizes are available designed around standard tube lengths
of 1.5, 2.0 or 3.2 metres. Once the steel tubing rails have been cut to size, they can be locked into position
by the corner components. The adjustable clamping rings are used to fix the feet securely to the corners of the rooflight base,
which can be up to 4m 2 in area. Additionally a gate can be incorporated for access to roof hatches.
Fully Modular
Although designed as a permanent solution, the Kee Dome system is fully modular, so it can also be taken down,
®
moved and re-erected as required. Once constructed, it provides a maximum permissible horizontal load of 300 N/m
and complies fully with the relevant rooftop safety legislation and EN 14122 pt3.
The system is suitable for use on all roof surfaces, with a maximum pitch of 3°.
- Simple and reliable collective fall protection system
- Recycled PVC feet do not penetrate the roof membrane
- Complies with EN 14122: pt3
- Fits square and rectangular skylights, rooflights and domelights
- Rapid assembly around the designated areas
Design & Installation Service
Kee Safety offers our customers a full design and installation service, we can undertake surveys
and produce CAD drawings for each project. If you are interested in our services, please contact us.
