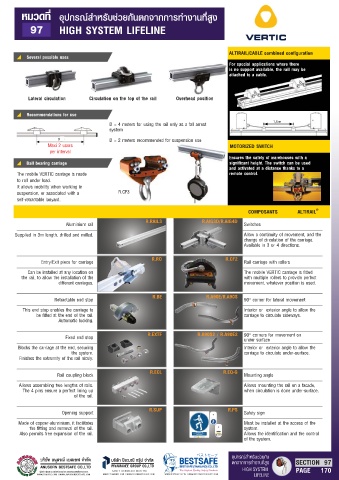

Page 185 - Sec 97

หมวดที่ อุปกรณสำหรับชวยกันตกจากการทำงานที่สูง

97 HIGH SYSTEM LIFELINE

ALTIRAIL/CABLE combined configuration
Several possible uses
For special applications where there
is no support available, the rail may be
attached to a cable.

Lateral circulation Circulation on the top of the rail Overhead position

Recommendations for use
D = 4 meters for using the rail only as a fall arrest 1,5 m
system
D D = 2 meters recommended for suspension use
Maxi 2 users MOTORIZED SWITCH
per interval
Ensures the safety of warehouses with a
Ball bearing carriage significant height. The switch can be used
and activated at a distance thanks to a
The mobile VERTIC carriage is made remote control.
to roll under load.
It allows mobility when working in
suspension, or associated with a R.CF3
self-retractable lanyard.

COMPOSANTS ALTIRAIL ®
Aluminium rail R.RAIL3 R.AIG3D/R.AIG4D Switches

Supplied in 3m length, drilled and milled. Allow a continuity of movement, and the
change of circulation of the carriage.
Available in 3 or 4 directions.

Entry/Exit piece for carriage R.RO R.CF2 Rail carriage with rollers

Can be installed at any location on The mobile VERTIC carriage is fitted
the rail, to allow the installation of the with multiple rollers to provide perfect
different carriages. movement, whatever position is used.

Retractable end stop R.BE R.A90E/R.A90S 90° corner for lateral movement
This end stop enables the carriage to Interior or exterior angle to allow the
be fitted at the end of the rail. carriage to circulate sideways.
Automatic locking.

Fixed end stop R.EXTF R.A90S2 / R.A90E2 90° corners for movement on
under surface
Blocks the carriage at the end, securing Interior or exterior angle to allow the
the system. carriage to circulate under-surface.
Finishes the extremity of the rail nicely.

R.ECL R.EQ-G
Rail coupling block Mounting angle
Allows assembling two lengths of rails. Allows mounting the rail on a facade,
The 4 pins ensure a perfect lining up when circulation is done under-surface.
of the rail.

Opening support R.SUP R.PS Safety sign
Made of copper-aluminium, it facilitates Must be installed at the access of the
the fitting and removal of the rail. system.
Also permits free expansion of the rail. Allows the identification and the control
of the system.
