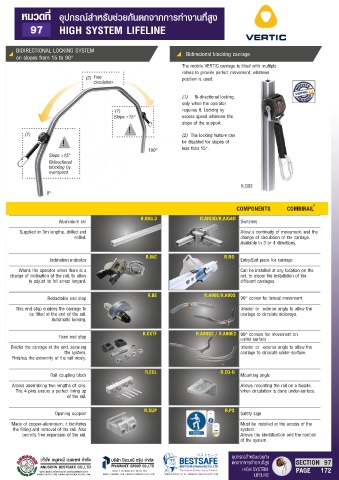

Page 187 - Sec 97

หมวดที่ อุปกรณสำหรับชวยกันตกจากการทำงานที่สูง

97 HIGH SYSTEM LIFELINE

BIDIRECTIONAL LOCKING SYSTEM 120°
60°
on slopes from 15 to 90° Bidirecional blocking carriage
The mobile VERTIC carriage is fitted with multiple
rollers to provide perfect movement, whatever
(2) Free position is used.
circulation

(1) Bi-directional locking,
only when the operator
(1) requires it. Locking by
Slope >15° excess speed whatever the
slope of the support.
!
(1) (2) The locking feature can
! be disabled for slopes of
180° less than 15°.
Slope >15°
Bidirectional
blocking by
overspeed

R.CB2
0°

COMPONENTS COMBIRAIL ®

Aluminium rail R.RAIL3 R.AIG3D/R.AIG4D Switches
Supplied in 3m lengths, drilled and Allow a continuity of movement, and the
milled. change of circulation of the carriage.
Available in 3 or 4 directions.

R.INC R.RO
Inclination indicator Entry/Exit piece for carriage
Warns the operator when there is a Can be installed at any location on the
change of inclination of the rail, to allow rail, to aloow the installation of the
to adjust its fall arrest lanyard. different carriages.

Retractable end stop R.BE R.A90E/R.A90S 90° corner for lateral movement

This end stop enables the carriage to Interior or exterior angle to allow the
be fitted at the end of the rail. carriage to circulate sideways.
Automatic locking.

Fixed end stop R.EXTF R.A90S2 / R.A90E2 90° corners for movement on
under surface
Blocks the carriage at the end, securing Interior or exterior angle to allow the
the system. carriage to circulate under-surface.
Finishes the extremity of the rail nicely.

R.ECL R.EQ-G
Rail coupling block Mounting angle
Allows assembling two lengths of rails. Allows mounting the rail on a facade,
The 4 pins ensure a perfect lining up when circulation is done under-surface.
of the rail.

Opening support R.SUP R.PS Safety sign
Made of copper-aluminium, it facilitates Must be installed at the access of the
the fitting and removal of the rail. Also system.
permits free expansion of the rail. Allows the identification and the control
of the system.
