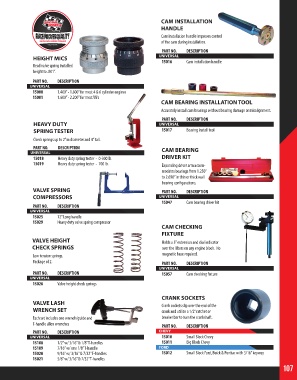

Page 107 - 2018 Master Catalog

CAM INSTALLATION
HANDLE
Cam installation handle improves control
of the cam during installation.
PART NO. DESCRIPTION
HEIGHT MICS UNIVERSAL Cam installation handle
15016
Read valve spring installed
height to .001”.
PART NO. DESCRIPTION
UNIVERSAL
15000 1.400” - 1.800” for most 4 & 6 cylinder engines
15001 1.600” - 2.200” for most V8’s
CAM BEARING INSTALLATION TOOL

Accurately install cam bearings without bearing damage or misalignment.
PART NO. DESCRIPTION
HEAVY DUTY UNIVERSAL
SPRING TESTER 15017 Bearing install tool
Check springs up to 2” in diameter and 4” tall.
PART NO. DESCRIPTION CAM BEARING
UNIVERSAL
15018 Heavy duty spring tester - 0-300 lb. DRIVER KIT
15019 Heavy duty spring tester - 700 lb. Expanding driver arm accom-
modates bearings from 1.250”
to 2.690” in thin or thick wall
bearing configurations.
VALVE SPRING PART NO. DESCRIPTION
COMPRESSORS UNIVERSAL
15047 Cam bearing driver kit
PART NO. DESCRIPTION
UNIVERSAL
15025 12” Long handle
15029 Heavy duty valve spring compressor
CAM CHECKING
FIXTURE
VALVE HEIGHT Holds a 5” extension and dial indicator
CHECK SPRINGS over the lifters on any engine block. No
Low tension springs. magnetic base required.
Package of 2. PART NO. DESCRIPTION
UNIVERSAL
PART NO. DESCRIPTION 15057 Cam checking fixture
UNIVERSAL
15026 Valve height check springs

CRANK SOCKETS
VALVE LASH Crank sockets slip over the end of the
WRENCH SET crank and utilize a 1/2” ratchet or
Each set includes one wrench/guide and breaker bar to turn the crankshaft.
T-handle allen wrenches PART NO. DESCRIPTION
PART NO. DESCRIPTION CHEVY
UNIVERSAL 15010 Small Block Chevy
15108 1/2” w/ 3/16” & 1/8” T-handles 15011 Big Block Chevy
15109 7/16” w/ one 1/8” T-handle FORD
15020 9/16” w/ 3/16” & 7/32” T-handles 15012 Small Block Ford, Buick & Pontiac with 3/16” keyway
15021 5/8” w/ 3/16” & 7/32” T-handles
107
