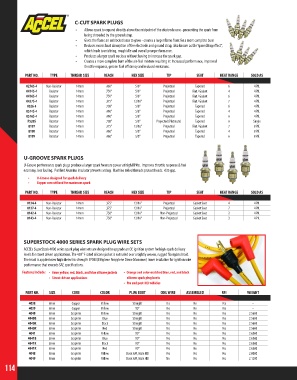

Page 114 - 2018 Master Catalog
P. 114
C-CUT SPARK PLUGS
• Allows spark to expand directly above the midpoint of the electrode core - preventing the spark from
being shrouded by the ground strap.
• Gives the flame an unblocked area to grow - creates a larger flame front for a more complete burn
• Reduces excess heat absorption of the electrode and ground strap, also known as the “quenching effect”,
which leads to misfiring, rough idle and overall poor performance.
• Produces a larger spark nucleus without having to increase the spark gap.
• Creates a more complete burn of the air-fuel mixture resulting in: Increased performance, improved
throttle response, greater fuel efficiency and reduced emissions.
PART NO. TYPE THREAD SIZE REACH HEX SIZE TIP SEAT HEAT RANGE SOLD AS
0276S-4 Non-Resistor 14mm .460” 5/8” Projected Tapered 6 4 PK.
0414S-4 Resistor 14mm .750” 5/8” Projected Flat / Gasket 4 4 PK.
0416S-4 Resistor 14mm .750” 5/8” Projected Flat / Gasket 6 4 PK.
0437S-4 Resistor 14mm .375” 13/16” Projected Flat / Gasket 7 4 PK.
0526-4 Resistor 14mm .708” 5/8” Projected Tapered 6 4 PK.
0574S-4 Resistor 14mm .460” 5/8” Projected Tapered 4 4 PK.
0576S-4 Resistor 14mm .460” 5/8” Projected Tapered 6 4 PK.
P526S Resistor 14mm .708” 5/8” Projected (Platinum) Tapered 6 Single
8197 Resistor 14mm .375” 13/16” Projected Flat / Gasket 7 8 PK.
8198 Resistor 14mm .460” 5/8” Projected Tapered 4 8 PK.
8199 Resistor 14mm .460” 5/8” Projected Tapered 6 8 PK.
U-GROOVE SPARK PLUGS
U-Groove performance spark plugs produce a larger spark for more power at high RPMs. Improves throttle response & fuel
economy, less fouling. Purified Alumina insulator prevents arcing. Machine rolled threads protect heads. 035 gap.
• U-Groove designed for spark delivery
• Copper core utilized for maximum spark
PART NO. TYPE THREAD SIZE REACH HEX SIZE TIP SEAT HEAT RANGE SOLD AS
0134-4 Non-Resistor 14mm .375” 13/16” Projected Gasket Seat 4 4 PK.
0137-4 Non-Resistor 14mm .375” 13/16” Projected Gasket Seat 7 4 PK.
0142-4 Non-Resistor 14mm .750” 13/16” Non-Projected Gasket Seat 2 4 PK.
0143-4 Non-Resistor 14mm .750” 13/16” Non-Projected Gasket Seat 3 4 PK.
SUPERSTOCK 4000 SERIES SPARK PLUG WIRE SETS
ACCEL’s SuperStock 4000 series spark plug wire sets are designed to upgrade an OE ignition system for high-spark delivery
levels for street driven applications. The 450° F rated silicone jacket is extruded over a tightly woven, rugged fiberglass braid.
The braid is applied over high dielectric strength EPDM (Ethylene Propylene Diene Monomer) inner insulation for ignition wire
performance that exceeds SAE specifications.
Features Include: • 8mm yellow, red, black, and blue silicone jackets • Orange and color-matched blue, red, and black
• Street-driven applications silicone spark plug boots
• Pre and post-HEI vehicles
PART NO. SIZE CORE COLOR PLUG BOOT COIL WIRE ASSEMBLED RFI WEIGHT
4038 8mm Copper Yellow Straight Yes No Yes --
4039 8mm Copper Yellow 90° Yes No Yes --
4040 8mm Graphite Yellow Straight Yes No Yes 2.5600
4040B 8mm Graphite Blue Straight Yes No Yes 2.5600
4040K 8mm Graphite Black Straight Yes No Yes 2.5600
4040R 8mm Graphite Red Straight Yes No Yes 2.5600
4041 8mm Graphite Yellow 90° Yes No Yes 2.6300
4041B 8mm Graphite Blue 90° Yes No Yes 2.6300
4041K 8mm Graphite Black 90° Yes No Yes 2.6300
4041R 8mm Graphite Red 90° Yes No Yes 2.6300
4048 8mm Graphite Yellow Stock GM, Male HEI Yes Yes Yes 2.0000
4049 8mm Graphite Yellow Stock GM, Male HEI No Yes Yes 2.1200
114
