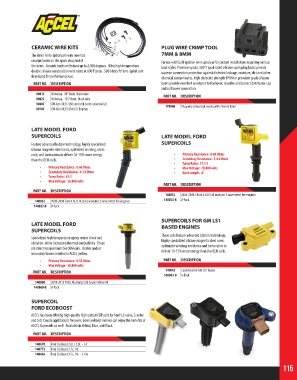

Page 115 - 2018 Master Catalog

CERAMIC WIRE KITS PLUG WIRE CRIMP TOOL

The 8mm Ferro-Spiral core wire now has 7MM & 8MM
ceramic boots on the spark plug end of For use with bulk ignition wire spools or for custom installations requiring various
the wires. Ceramic boots withstand up to 2,000 degrees. Ultra high temperature boot styles. Premium grade, 500°F peak rated silicone spark plug boots provide
double silicone construction wire rated at 600°F peak. 500 ohms/ft Ferro-Spiral core superior connection protection against dielectric leakage, moisture, dirt and other
developed for performance use. chemical contaminants. High dielectric strength EPDM or premium grade silicone
PART NO. DESCRIPTION boots provide excellent resistance to flashover, crossfire and protect distributor cap
and coil tower connection
9001C Universal, 90° Boot, Black wire PART NO. DESCRIPTION
9002C Universal, 135° Boot, Black wire
9060C GM Gen 3 LS1/LS6 stock coil boots universal kit 170040 Plug wire crimp tool, works with 7mm & 8mm
9070C GM Gen 4 LS3/LS4/LS7 Engines

LATE MODEL FORD
SUPERCOILS LATE MODEL FORD
Feature advanced bobbin technology, highly specialized SUPERCOILS
silicone magnetic steel cores, optimized winding, resist-
ance, and turns ratios to deliver 10-15% more energy • Primary Resistance: 0.60 Ohms
than the OEM coils. • Secondary Resistance: 5.4 k Ohms
• Turns Ratio: 77.7:1
• Primary Resistance: 0.66 Ohms • Max Voltage: 28,000 volts
• Secondary Resistance: 6.1 k Ohms • Boot Length: 4”
• Turns Ratio: 61:1
• Max Voltage: 26,000 volts
PART NO. DESCRIPTION
PART NO. DESCRIPTION
140033 2004-2008.5 Ford 4.6L/5.4L modular 3 valve direct fire engines
140032 1998-2008 Ford 4.6L/5.4L/6.8L modular 2 valve direct fire engines 140033-8 8-Pack
140032-8 8-Pack

SUPERCOILS FOR GM LS1
LATE MODEL FORD BASED ENGINES
SUPERCOILS
Specialized high temperature epoxy resists shock and These coils feature advanced bobbin technology,
vibration, while increasing thermal conductivity. These highly specialized silicone magnetic steel cores,
are direct replacements for OEM coils. Bodies and/or optimized winding, resistance and turns ratios to
deliver 10-15% more energy than the OEM coils.
secondary towers molded in ACCEL yellow.
• Primary Resistance: 0.55 Ohms PART NO. DESCRIPTION
• Max Voltage: 38,000 volts
PART NO. DESCRIPTION 140043 SuperCoils for GM LS1 Trucks
140043-8 8-Pack
140060 2011-2013 F150, Mustang 5.0L Coyote Motor V8
140060-8 8-Pack

SUPERCOIL
FORD ECOBOOST
ACCEL has been offering high quality high output COP coils for Ford’s 2-valve, 3-valve
and 5.0L Coyote applications for years, now EcoBoost owners can enjoy the benefits of
ACCEL Supercoils as well! Available in Yellow, Blue, and Black.
PART NO. DESCRIPTION

140670 Ford EcoBoost 2.0L / 2.3L - L4
140773 Ford EcoBoost 2.7L, V6
140646 Ford EcoBoost 3.5L, V6 - 3-Pin

115
