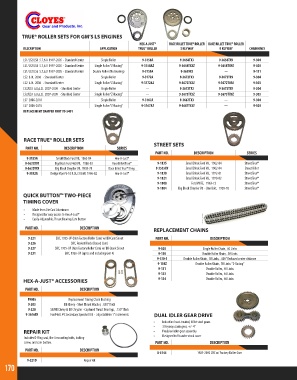

Page 170 - 2018 Master Catalog

TRUE® ROLLER SETS FOR GM’S LS ENGINES

HEX-A-JUST® RACE BILLET TRUE® ROLLER RACE BILLET TRUE® ROLLER
DESCRIPTION APPLICATION TRUE® ROLLER 3 KEYWAY 9 KEYWAY CHAIN ONLY

LS1/LS2/LS6 5.7,6.0 1997-2005 - Standard Center Single Roller 9-3158A 9-3658TX3 9-3658TX9 9-304
LS1/LS2/LS6 5.7,6.0 1997-2005 - Standard Center Single Roller “Z-Racing” 9-3158AZ 9-3658TX3Z 9-3658TX9Z 9-303
LS1/LS2/LS6 5.7,6.0 1997-2005 - Standard Center Double Roller (No Bearing) 9-3159A 9-3659X3 --- 9-131
LS2 6.0L 2006 - Standard Center Single Roller 9-3172A 9-3672TX3 9-3672TX9 9-304
LS2 6.0L 2006 - Standard Center Single Roller “Z-Racing” 9-3172AZ 9-3672TX3Z 9-3672TX9Z 9-303
LS2/LS3 6.0,6.2L 2007-2009 - Standard Center Single Roller --- 9-3673TX3 9-3673TX9 9-304
LS2/LS3 6.0,6.2L 2007-2009 - Standard Center Single Roller “Z-Racing” --- 9-3673TX3Z 9-3673TX9Z 9-303
LS7 2006-2010 Single Roller 9-3167A 9-3667TX3 --- 9-304
LS7 2006-2010 Single Roller “Z-Racing” 9-3167AZ 9-3667TX3Z --- 9-303
REPLACEMENT DAMPER PART #9-5491

RACE TRUE® ROLLER SETS
STREET SETS
PART NO. DESCRIPTION SERIES
PART NO. DESCRIPTION SERIES
9-3135A Small Block Ford V8, 1962-84 Hex-A-Just®
9-3622X9Z Big Block Ford 460 V8, 1988-92 Race Billet True® 9-1135 Small Block Ford V8, 1962-84 Street True®
9-3625TX9 Big Block Chrysler V8, 1958-78 Race Billet True® 9 key. 9-3535X9 Small Block Ford V8, 1962-84 Street Billet
9-3152A Dodge Viper V-10 8.0L (3 Bolt) 1996-02 Hex-A-Just® 9-1138 Small Block Ford V8, 1972-01 Street True®
9-1121 Small Block Ford V8, 1970-82 Street True®
9-1108 Ford V8 FE, 1963-73 Street True®
9-1104 Big Block Chrysler V8 - One Bolt, 1958-78 Street True®
QUICK BUTTON™ TWO-PIECE
TIMING COVER
• Made from Die Cast Aluminum
• Designed for easy access to Hex-A-Just®
• Easily-Adjustable, Thrust Bearing Cam Button
PART NO. DESCRIPTION REPLACEMENT CHAINS

9-221 SBC, 1955-UP (Non Factory Roller Cam) w/ BB Cam Snout PART NO. DESCRIPTION
9-226 SBC, Rocket Block (Raised Cam)
9-227 SBC, 1955-UP (Non Factory Roller Cam) w/ BB Crank Snout 9-303 Single Roller Chain, 60 Links
9-231 BBC, 1965-UP (up to and including Gen 4) 9-130 Double Roller Chain, 58 Links
9-130-5 Double Roller Chain, 58 Links, .005” Reduced center distance
9-130Z Doulbe Roller Chain, 58 Links “Z-Racing”
9-131 Double Roller, 60 Links
9-133 Double Roller, 64 Links
HEX-A-JUST® ACCESSORIES 9-134 Double Roller, 66 Links
PART NO. DESCRIPTION
P9005 Replacement Timing Chain Bushing
9-203 BB Chevy - Steel Thrust Washer, .030” thick
9-220 SB/BB Chevy & BB Chrysler - Captured Thrust Bearings, .150” thick
9-3676X9 Ford 4.6L 4V Secondary Sprocket Kit - adjustable in 1° increments DUAL IDLER GEAR DRIVE
• Induction heat-treated, billet steel gears
• 3 Keyway crank gear, +/- 4°
REPAIR KIT • Precision idler gear assembly
Includes O-Ring seal, the 4 mounting bolts, locking • Designed to fit under stock cover
screw, and cam button. PART NO. DESCRIPTION
PART NO. DESCRIPTION
8-5145 1985-2002 SBC w/ Factory Roller Cam
9-221D Repair Kit
170
