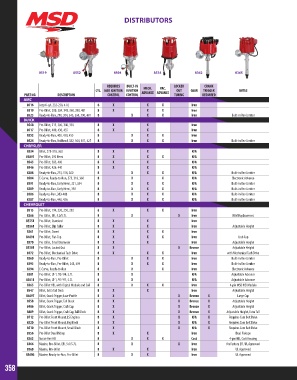

Page 358 - 2018 Master Catalog

DISTRIBUTORS

8519 8552 8504 8534 8362 8365

REQUIRES BUILT-IN LOCKED CRANK
CYL. MSD IGNITION IGNITION MECH. VAC. OUT GEAR TRIGGER NOTES
PART NO. DESCRIPTION CONTROL CONTROL ADVANCE ADVANCE TIMING REQUIRED
AMC
8516 Jeep 6-cyl. 232-258, 4.0L 6 X X X Iron
8519 Pro-Billet, 290, 304, 343, 360, 390, 401 8 X X X Iron
8523 Ready-to-Run, 290, 304, 343, 360, 390, 401 8 X X X Iron Built-in Rev Limiter
BUICK
8548 Pro-Billet, 215, 300, 340, 350 8 X X Iron
8517 Pro-Billet, 400, 430, 455 8 X X Iron
8552 Ready-to-Run, 400, 430, 455 8 X X X Iron
8524 Ready-to-Run, Nailhead, 322, 364, 401, 425 8 X X X Iron Built-in Rev Limiter
CHRYSLER
8534 Billet, 273-318, 360 8 X X N/A
83891 Pro-Billet, 392 Hemi 8 X X X N/A
8545 Pro-Billet, 383, 400 8 X X N/A
8546 Pro-Billet, 426, 440 8 X X N/A
8388 Ready-to-Run, 273, 318, 360 8 X X X N/A Built-in Rev Limiter
8504 E-Curve, Ready-to-Run, 273, 318, 360 8 X X N/A Electronic Advance
8391 Ready-to-Run, Early Hemi, 331, 354 8 X X X N/A Built-in Rev Limiter
8389 Ready-to-Run, Early Hemi, 392 8 X X X N/A Built-in Rev Limiter
8386 Ready-to-Run, 383-400 8 X X X N/A Built-in Rev Limiter
8387 Ready-to-Run, 440, 426 8 X X X N/A Built-in Rev Limiter
CHEVROLET
8515 Pro-Billet, 194, 230, 250, 292 6 X X X Iron
8366 Pro-Billet, EFI, 5.0/5.7L 8 X X Iron OEM Replacement
85551 Pro-Billet, Standard 8 X X Iron
85561 Pro-Billet, Slip Collar 8 X X Iron Adjustable Height
8361 Pro-Billet, Street 8 X X X Iron
84891 Pro-Billet, Flat-Top 8 X X X Iron Crab Cap
8570 Pro-Billet, Small Diameter 8 X X Iron Adjustable Height
85501 Pro-Billet, Locked Out 8 X X Bronze Adjustable Height
8572 Pro-Billet, Mechanical Tach Drive 8 X X X Iron with Mechanical Tach Drive
8360 Ready-to-Run, Pro-Billet 8 X X X Iron Built-in Rev Limiter
8393 Ready-to-Run, Pro-Billet, 348, 409 8 X X X Iron Built-in Rev Limiter
8394 E-Curve, Ready-to-Run 8 X X Iron Electronic Advance
8381 Pro-Billet, LT-1, ‘93-’94, 5.7L 8 X N/A Adjustable Advance
83811 Pro-Billet, LT-1, ‘95-’97, 5.7L 8 X N/A Adjustable Advance
8365 Pro-Billet HEI, with Digital Module and Coil 8 X X X Iron 4-pin MSD HEI Module
8547 Billet, Extra Tall Deck 8 X X Iron Adjustable Height
84697 Billet, Crank Trigger, Low-Profile 8 X X Bronze X Large Cap
8558 Billet, Crank Trigger, Tall Block 8 X X Bronze X Adjustable Height
8486 Billet, Crank Trigger, Crab Cap 8 X X Bronze X Adjustable Height
8489 Billet, Crank Trigger, Crab Cap, Tall Block 8 X X Bronze X Adjustable Height, Extra Tall
8712 Pro-Billet Front Mount, LS Engines 8 X X N/A X Requires Cam Belt Drive
8520 Pro-Billet Front Mount, Big Block 8 X X N/A X Requires Cam Belt Drive
8510 Pro-Billet Front Mount, Small Block 8 X X N/A X Requires Cam Belt Drive
8356 Pro-Billet Dual Pickup 8 X X Iron Dual Pickups
8362 Street-Fire HEI 8 X X X Cast 4-pin HEI, Cast Housing
8366 Marine, Pro-Billet, EFI, 5.0/5.7L 8 X X Iron for Factory EFI, UL Approved
8560 Marine, Pro-Billet 8 X X Iron UL Approved
83606 Marine, Ready-to-Run, Pro-Billet 8 X X Iron UL Approved

358
