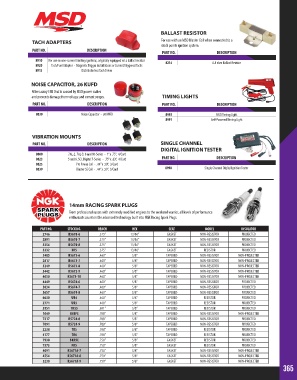

Page 365 - 2018 Master Catalog

BALLAST RESISTOR
TACH ADAPTERS For use with an MSD Blaster Coil when connected to a
stock points ignition system.
PART NO. DESCRIPTION
PART NO. DESCRIPTION
8910 For use on non-current limiting ignitions, originally equipped w/ a ballast resistor 8214 0.8 ohm Ballast Resistor
8920 Tach/Fuel Adapter - Magnetic Trigger Installations or Current Triggered Tachs
8913 Distributorless Tach Driver

NOISE CAPACITOR, 26 KUFD
Filters away EMI that is caused by MSD power cables
and prevents damage from voltage and current surges. TIMING LIGHTS
PART NO. DESCRIPTION PART NO. DESCRIPTION

8830 Noise Capacitor - 26 KUFD 8992 MSD Timing Light
8991 Self-Powered Timing Light

VIBRATION MOUNTS
PART NO. DESCRIPTION SINGLE CHANNEL
DIGITAL IGNITION TESTER
8800 7AL-2, 7AL-3, 8 and 10-Series - 1” x .75”, 4/Card
8823 5 and 6, SCI, Digital 7-Series - .75” x .63”, 4/Card PART NO. DESCRIPTION
8825 Pro Power Coil - .44” x .50”, 3/Card
8839 Blaster SS Coil - .44” x .50”, 3/Card 8998 Single Channel Digital Ignition Tester

14mm RACING SPARK PLUGS
From professional racers with extremely modified engines to the weekend warrior, all levels of performance
enthusiasts count on the advanced technology built into NGK Racing Spark Plugs.

PART NO. STOCK NO. REACH HEX SEAT MODEL INSULATOR
2746 R5670-6 .375” 13/16” GASKET NON-RESISTOR PROJECTED
2891 R5670-7 .375” 13/16” GASKET NON-RESISTOR PROJECTED
3354 R5670-8 .375” 13/16” GASKET NON-RESISTOR PROJECTED
3332 XR5 .375” 13/16” GASKET RESISTOR PROJECTED
2405 R5673-6 .460” 5/8” TAPERED NON-RESISTOR NON-PROJECTED
2817 R5673-7 .460” 5/8” TAPERED NON-RESISTOR NON-PROJECTED
3249 R5673-8 .460” 5/8” TAPERED NON-RESISTOR NON-PROJECTED
3442 R5673-9 .460” 5/8” TAPERED NON-RESISTOR NON-PROJECTED
4050 R5673-10 .460” 5/8” TAPERED NON-RESISTOR NON-PROJECTED
4449 R5674-6 .460” 5/8” TAPERED NON-RESISTOR PROJECTED
5034 R5674-7 .460” 5/8” TAPERED NON-RESISTOR PROJECTED
5657 R5674-8 .460” 5/8” TAPERED NON-RESISTOR PROJECTED
6630 UR4 .460” 5/8” TAPERED RESISTOR PROJECTED
2771 UR5 .460” 5/8” TAPERED RESISTOR PROJECTED
3951 TR55 .691” 5/8” TAPERED RESISTOR PROJECTED
1049 B8EFS .708” 5/8” TAPERED NON-RESISTOR NON-PROJECTED
7317 R5724-8 .708” 5/8” TAPERED NON-RESISTOR PROJECTED
7891 R5724-9 .708” 5/8” TAPERED NON-RESISTOR PROJECTED
2238 TR5 .708” 5/8” TAPERED RESISTOR PROJECTED
4177 TR6 .708” 5/8” TAPERED RESISTOR PROJECTED
7938 BKR5E .750” 5/8” GASKET RESISTOR PROJECTED
7373 FR5 .750” 5/8” GASKET RESISTOR PROJECTED
4091 R5671A-7 .750” 5/8” GASKET NON-RESISTOR NON-PROJECTED
4554 R5671A-8 .750” 5/8” GASKET NON-RESISTOR NON-PROJECTED
5238 R5671A-9 .750” 5/8” GASKET NON-RESISTOR NON-PROJECTED
365
