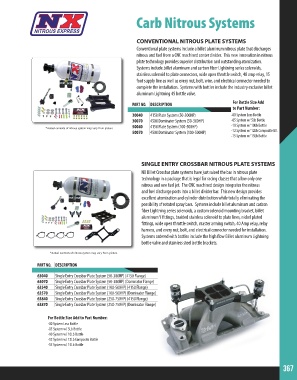

Page 367 - 2018 Master Catalog

Carb Nitrous Systems

CONVENTIONAL NITROUS PLATE SYSTEMS
Conventional plate systems include a billet aluminum nitrous plate that discharges
nitrous and fuel from a CNC machined center divider. This new innovation in nitrous
plate technology provides superior distribution and outstanding atomization.
Systems include billet aluminum and carbon fiber Lightning series solenoids,
stainless solenoid to plate connectors, wide open throttle switch, 40 amp relay, 15
foot supply line as well as every nut, bolt, wire, and electrical connector needed to
complete the installation. Systems with bottles include the industry exclusive billet
aluminum Lightning 45 bottle valve.

PART NO. DESCRIPTION For Bottle Size Add
to Part Number:
30040 4150 Plate System (50-300HP) -00 System Less Bottle
30070 4500 Dominator System (50-300HP) -05 System w/ 5Lb Bottle
50040 4150 Plate System (100-500HP) -10 System w/ 10Lb Bottle
*Actual contents of nitrous system may vary from picture -12 System w/ 12Lb Composite Btl.
50070 4500 Dominator System (100-500HP)
-15 System w/ 15Lb Bottle

SINGLE ENTRY CROSSBAR NITROUS PLATE SYSTEMS

NX Billet Crossbar plate systems have just raised the bar in nitrous plate
technology in a package that is legal for racing classes that allow only one
nitrous and one fuel jet. The CNC machined design integrates the nitrous
and fuel discharge ports into a billet divider bar. This new design provides
excellent atomization and cylinder distribution while totally eliminating the
possibility of rotated spray bars. Systems include billet aluminum and carbon
fiber Lightning series solenoids, a custom solenoid mounting bracket, billet
aluminum Y fittings, braided stainless solenoid to plate lines, nickel plated
fittings, wide open throttle switch, master arming switch, 40 Amp relay, relay
harness, and every nut, bolt, and electrical connector needed for installation.
Systems ordered with bottles include the high flow Billet aluminum Lightning
bottle valve and stainless steel bottle brackets.

*Actual contents of nitrous system may vary from picture

PART NO. DESCRIPTION
63040 Single Entry Crossbar Plate System (50-300HP) (4150 Flange)
63070 Single Entry Crossbar Plate System (50-300HP) (Dominator Flange)
63540 Single Entry Crossbar Plate System (100-500HP) (4150 Flange)
63570 Single Entry Crossbar Plate System (100-500HP) (Dominator Flange)
63840 Single Entry Crossbar Plate System (250-750HP) (4150 Flange)
63870 Single Entry Crossbar Plate System (250-750HP) (Dominator Flange)

For Bottle Size Add to Part Number:
-00 System Less Bottle
-05 System w/ 5Lb Bottle
-10 System w/ 10Lb Bottle
-12 System w/ 12Lb Composite Bottle
-15 System w/ 15Lb Bottle

367
