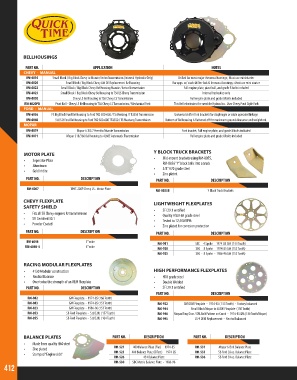

Page 412 - 2018 Master Catalog

BELLHOUSINGS

PART NO. APPLICATION NOTES
CHEVY - MANUAL
RM-6010 Small Block / Big Block Chevy to Muncie/Jerico Transmission (Internal Hydraulic Only) Drilled for most major throwout bearings; Must use mini starter
RM-6020 Small Block / Big Block Chevy GM OE Replacement Bellhousing For apps. w/ stock shifter fork & throwout bearings; Must use mini starter
RM-6022 Small Block / Big Block Chevy Bellhousing Muncie / Jerico Transmission Full engine plate, pivot ball, and grade 8 bolts included
RM-6023 Small Block / Big Block Chevy Bellhousing to T56 LS Chevy Transmission Internal hydraulics only
RM-8020 Chevy LS Bellhousing to T56 Chevy LS Transmission Full engine plate and grade 8 bolts included
RM-8020PB Pivot Ball - Chevy LS Bellhousing to T56 Chevy LS Transmission / Mechanical Fork This Bell eliminates the need for Hydraulics. Uses Chevy Push Style Fork
FORD - MANUAL
RM-6056 FE Big Block Ford Bellhousing to Ford TKO 500-600 / T5 Mustang / TR3550 Transmission Universal shifter fork brackets for diaphragm or cable operated linkage
RM-6060 5.0/5.8 Ford Bellhousing to Ford TKO 500-600 TR3550 / T5 Mustang Transmission Bottom of Bellhousing is flattened off for maximum ground clearance and weight red.
MOPAR
RM-8079 Mopar 6.1/5.7 Hemi to Muncie Transmission Fork bracket, Full engine plate, and grade 8 bolts included
RM-9071 Mopar 318/360 Bellhousing to 4L60E Automatic Transmission Full engine plate and grade 8 bolts included

MOTOR PLATE Y BLOCK TRUCK BRACKETS
• Seperator Plate • Mid-mount brackets using RM-8055,
• Aluminum RM-8056 “Y” black bells into a truck
• Gold Iridite • 3/8” H70 grade steel
• Zinc plated
PART NO. DESCRIPTION PART NO. DESCRIPTION

RM-6007 1997-2009 Chevy LS - Motor Plate RM-8055B Y Block Truck Brackets

CHEVY FLEXPLATE LIGHTWEIGHT FLEXPLATES
SAFETY SHIELD • SFI 29.1 certified
• Fits all SB Chevy engines & transmissions • Quality HSLA 60 grade steel
• SFI Certified 30.1 • Tested to 12,500 RPM
• Powder Coated • Zinc plated for corrosion protection
PART NO. DESCRIPTION PART NO. DESCRIPTION

RM-6098 3” wide RM-901 SBC - 4 Spoke - 1974-85 GM (153 Tooth)
RM-6098-4 4” wide RM-920 SBC - 8 Spoke - 1974-85 GM (153 Tooth)
RM-925 SBC - 8 Spoke - 1986-96 GM (153 Tooth)
RACING MODULAR FLEXPLATES
• 4130 Modular construction HIGH PERFORMANCE FLEXPLATES
• Neutral Balance • H70 grade steel
• Over twice the strength of an OEM Flexplate • Double Welded
PART NO. DESCRIPTION • SFI 29.1 certified
PART NO. DESCRIPTION
RM-802 GM Flexplate - 1974-85 (168 Tooth)
RM-803 GM Flexplate - 1974-85 (153 Tooth) RM-922 GM OEM Flexplate - 1974-85 ( 153 Tooth) - Factory balanced
RM-823 GM Flexplate - 1986-96 (153 Tooth) RM-944 Small Block Mopar to 4L80E Flexplate (130 Tooth)
RM-853 SB Ford Flexplate - 5.0/5.8L (157 Tooth) RM-946 Mopar Ring Gear / GM Bolt Pattern on Crank - 1974-85 GM (130 Tooth Mopar)
RM-855 SB Ford Flexplate - 5.0/5.8L (164 Tooth) RM-995 LS-9 OEM Replacement - Neutral balanced

BALANCE PLATES PART NO. DESCRIPTION PART NO. DESCRIPTION
• Made from quality H60 steel
• Zinc plated RM-521 400 Balance Plate (Flat) - 1974-85 RM-531 Mopar 6-Bolt Balance Plate
• Stamped “Engine side” RM-525 400 Balance Plate (Offset) - 1974-85 RM-535 SB Ford 28 oz. Balance Plate
RM-526 454 Balance Plate RM-536 SB Ford 50 oz. Balance Plate
RM-530 SBC Metric Balance Plate - 1986-96
412
