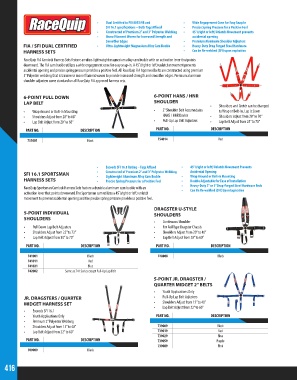

Page 416 - 2018 Master Catalog

• Dual Certified to FIA 8853/98 and • Wide Engagement Cone for Easy Snap In
SFI 16.1 specifications – Both Tags Affixed • Precise Spring Pressure for a Positive Feel
• Constructed of Premium 2” and 3” Polyester Webbing • 45° (right or left) Unlatch Movement prevents
• Mono Filament Woven for IncreasedStrength and accidental opening
Smoother Edges • Premium Aluminum Shoulder Adjusters
FIA / SFI DUAL CERTIFIED • Ultra-Lightweight Magnesium Alloy Cam Buckle • Heavy-Duty Drop Forged Steel Hardware
HARNESS SETS • Can be Re-webbed (SFI) upon expiration

RaceQuip FIA Camlock Harness Sets feature an ultra-lightweight magnesium alloy cam buckle with an activation lever that points
downward. The FIA cam buckle utilizes a wide engagement cone for easy snap-in. A 45˚(right or left) unlatch movement prevents
accidental opening and precise spring pressure provides a positive feel. All RaceQuip FIA Approved belts are constructed using premium
3” Polyester webbing that is transverse mono filament woven to provide increased strength and smoother edges. Premium aluminum
shoulder adjusters come standard on all RaceQuip FIA approved harness sets.

6-POINT PULL DOWN 6-POINT HANS / HNR
LAP BELT SHOULDER • Shoulders and Crotch can be changed
• Wrap Around or Bolt-In Mounting • 2” Shoulder Belt Accomodates to Wrap or Bolt-In, Lap is Sewn
• Shoulders Adjust from 20” to 68” HANS / HNR Device • Shoulders Adjust from 20” to 70”
• Lap Belt Adjust from 20” to 68” • Pull-Up Lap Belt Adjusters • Lap Belt Adjust from 25” to 70”
PART NO. DESCRIPTION PART NO. DESCRIPTION

751001 Black 754014 Red

• Exceeds SFI 16.1 Rating – Tags Affixed • 45° (right or left) Unlatch Movement Prevents
SFI 16.1 SPORTSMAN • • Constructed of Premium 2” and 3” Polyester Webbing • Accidental Opening
Wrap Around or Bolt-in Mounting
Lightweight Aluminum Alloy Cam Buckle
HARNESS SETS • Precise Spring Pressure for a Positive Feel • Double Adjustable for Ease of Installation
RaceQuip Sportsman Camlock Harness Sets feature a durable aluminum cam buckle with an • Heavy-Duty 2” or 3” Drop-Forged Steel Hardware Ends
activation lever that points downward. The Sportsman cam utilizes a 45˚(right or left) unlatch • Can Be Re-webbed (SFI) Upon Expiration
movement to prevent accidental opening and the precise spring pressure provides a positive feel.

DRAGSTER U-STYLE
5-POINT INDIVIDUAL SHOULDERS
SHOULDERS
• Continuous Shoulder
• Pull Down Lap Belt Adjusters • For Rail Type Dragster Chassis
• Shoulders Adjust from 25” to 72” • Shoulders Adjust from 20” to 40”
• Lap Belt Adjust from 30” to 70” • Lap Belt Adjust from 20” to 60”

PART NO. DESCRIPTION PART NO. DESCRIPTION
741001 Black 748008 Black
741011 Red
741021 Blue
742002 Same as 741 Series except Pull-Up Lap Belt
5-POINT JR. DRAGSTER /
QUARTER MIDGET 2” BELTS
• Youth Applications Only
JR. DRAGSTERS / QUARTER • Pull-Up Lap Belt Adjusters
MIDGET HARNESS SET • Shoulders Adjust from 15” to 40”
• Lap Belt Adjust from 22” to 60”
• Exceeds SFI 16.1
• Youth Applications Only PART NO. DESCRIPTION
• Premium 2” Polyester Webbing
• Shoulders Adjust from 15” to 40” 739009 Black
• Lap Belt Adjust from 22” to 60” 739019 Red
739029 Blue
PART NO. DESCRIPTION 739059 Purple
739089 Pink
709009 Black

416
