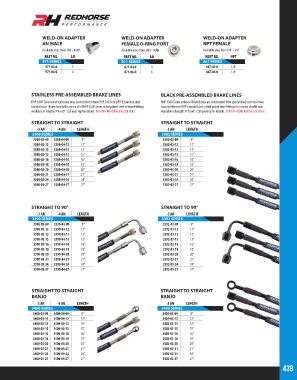

Page 439 - 2018 Master Catalog

WELD-ON ADAPTER WELD-ON ADAPTER WELD-ON ADAPTER
AN MALE FEMALE O-RING PORT NPT FEMALE
Available sizes from 3AN - 16AN. Available sizes from 4AN - 16AN. Available sizes from 1/8” - 3/4”.
PART NO. AN PART NO. AN PART NO. NPT
971 SERIES 871 SERIES 867 SERIES
971-03-0 3 871-04-0 4 867-02-0 1/8”
971-04-0 4 871-06-0 6 867-04-0 1/4”

STAINLESS PRE-ASSEMBLED BRAKE LINES BLACK PRE-ASSEMBLED BRAKE LINES
RHP 3300 Series universal brake hose is constructed from RHP 300 Series PTFE stainless steel RHP 3300 Series universal brake hoses are constructed from special black covered brake
braided hose. Brake hose is for use on all of RHP 3500 series nickel plated steel crimped fittings. hose and feature RHP’s special black nickel plated steel fittings for a clean, stealth look.
Available in lengths 9” to 60”. Call your rep for details. FOR OFF-ROAD RACING USE ONLY. Available in lengths 9” to 60”. Call your rep for details. FOR OFF-ROAD RACING USE ONLY.

STRAIGHT TO STRAIGHT STRAIGHT TO STRAIGHT
-3 AN -4 AN LENGTH -3 AN LENGTH
3300 SERIES 3302 SERIES
3300-03-09 3300-04-09 9” 3302-03-09 9”
3300-03-12 3300-04-12 12” 3302-03-12 12”
3300-03-13 3300-04-13 13” 3302-03-13 13”
3300-03-15 3300-04-15 15” 3302-03-15 15”
3300-03-16 3300-04-16 16” 3302-03-16 16”
3300-03-18 3300-04-18 18” 3302-03-18 18”
3300-03-20 3300-04-20 20” 3302-03-20 20”
3300-03-21 3300-04-21 21” 3302-03-21 21”
3300-03-24 3300-04-24 24” 3302-03-24 24”
3300-03-27 3300-04-27 27” 3302-03-27 27”

STRAIGHT TO 90° STRAIGHT TO 90°
-3 AN -4 AN LENGTH -3 AN LENGTH
3390 SERIES 3392 SERIES
3390-03-09 3390-04-09 9” 3392-03-09 9”
3390-03-12 3390-04-12 12” 3392-03-12 12”
3390-03-13 3390-04-13 13” 3392-03-13 13”
3390-03-15 3390-04-15 15” 3392-03-15 15”
3390-03-16 3390-04-16 16” 3392-03-16 16”
3390-03-18 3390-04-18 18” 3392-03-18 18”
3390-03-20 3390-04-20 20” 3392-03-20 20”
3390-03-21 3390-04-21 21” 3392-03-21 21”
3390-03-24 3390-04-24 24” 3392-03-24 24”
3390-03-27 3390-04-27 27” 3392-03-27 27”

STRAIGHT TO STRAIGHT STRAIGHT TO STRAIGHT
BANJO BANJO
-3 AN -4 AN LENGTH -3 AN LENGTH
3400 SERIES 3402 SERIES
3400-03-09 3400-04-09 9” 3402-03-09 9”
3400-03-12 3400-04-12 12” 3402-03-12 12”
3400-03-13 3400-04-13 13” 3402-03-13 13”
3400-03-15 3400-04-15 15” 3402-03-15 15”
3400-03-16 3400-04-16 16” 3402-03-16 16”
3400-03-18 3400-04-18 18” 3402-03-18 18”
3400-03-20 3400-04-20 20” 3402-03-20 20”
3400-03-21 3400-04-21 21” 3402-03-21 21”
3400-03-24 3400-04-24 24” 3402-03-24 24”
3400-03-27 3400-04-27 27” 3402-03-27 27”
439
