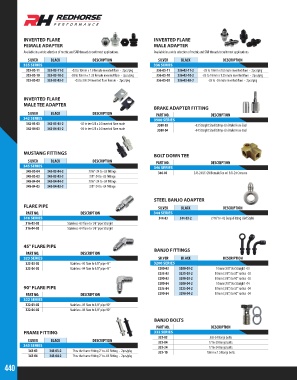

Page 440 - 2018 Master Catalog

INVERTED FLARE INVERTED FLARE
FEMALE ADAPTER MALE ADAPTER
Available in a wide selection of metric and SAR threads to suit most applications. Available in a wide selection of metric and SAR threads to suit most applications.
SILVER BLACK DESCRIPTION SILVER BLACK DESCRIPTION
335 SERIES 336 SERIES
335-03-11 335-03-11-2 -03 to 10mm x 1.0 female inverted flare - 2pcs/pkg 336-03-11 336-03-11-2 -03 to 10mm x 1.0 male inverted flare - 2pcs/pkg
335-03-10 335-03-10-2 -03 to 10mm x 1.25 female inverted flare - 2pcs/pkg 336-03-10 336-03-10-2 -03 to 10mm x 1.25 male inverted flare - 2pcs/pkg
335-03-03 335-03-03-2 -03 to 3/8-24 inverted flare female - 2pcs/pkg 336-03-03 336-03-03-2 -03 to -03 male inverted flare - 2pcs/pkg

INVERTED FLARE
MALE TEE ADAPTER
BRAKE ADAPTER FITTING
SILVER BLACK DESCRIPTION PART NO. DESCRIPTION
342 SERIES 3500 SERIES
342-03-03 342-03-03-2 -03 to tee 3/8 x 24 inverted flare male 3500-03 -03 Straight Steel Crimp-On Brake Hose End
342-04-03 342-04-03-2 -04 to tee 3/8 x 24 inverted flare male 3500-04 -04 Straight Steel Crimp-On Brake Hose End

MUSTANG FITTINGS BOLT DOWN TEE
SILVER BLACK DESCRIPTION PART NO. DESCRIPTION
345 SERIES 346 SERIES
345-03-04 345-03-04-2 7/16”-24 to -03 fittings 346-03 3/8-24 I.F. GM Female Tee w/ 3/8-24 Concave
345-03-03 345-03-03-2 3/8”-24 to -03 fittings
345-04-04 345-04-04-2 7/16”-24 to -04 fittings
345-04-03 345-04-03-2 3/8”-24 to -04 fittings

STEEL BANJO ADAPTER
FLARE PIPE SILVER BLACK DESCRIPTION
PART NO. DESCRIPTION 344 SERIES
316 SERIES 344-03 344-03-2 7/16” to -03 Banjo Fitting (GM Style)
316-03-02 Stainless -03 flare to 1/8” pipe Straight
316-04-02 Stainless -04 flare to 1/8” pipe Straight

45° FLARE PIPE
PART NO. DESCRIPTION BANJO FITTINGS
323 SERIES SILVER BLACK DESCRIPTION
323-03-02 Stainless -03 flare to 1/8” pipe 45° 3200 SERIES
323-04-02 Stainless -04 flare to 1/8” pipe 45° 3200-03 3200-03-2 10mm (3/8”) to Straight -03
3235-03 3235-03-2 10mm (3/8”) to 35° radius -03
3290-03 3290-03-2 10mm (3/8”) to 90° radius -03
3200-04 3200-04-2 10mm (3/8”) to Straight -04
90° FLARE PIPE 3235-04 3235-04-2 10mm (3/8”) to 35° radius -04
PART NO. DESCRIPTION 3290-04 3290-04-2 10mm (3/8”) to 90° radius -04
322 SERIES
322-03-02 Stainless -03 flare to 1/8” pipe 90°
322-04-02 Stainless -04 flare to 1/8” pipe 90°

BANJO BOLTS
PART NO. DESCRIPTION
FRAME FITTING 332 SERIES
332-03 3/8-24 Banjo bolts
SILVER BLACK DESCRIPTION 332-04 7/16-20 Banjo bolts
343 SERIES 332-24 7/16-24 Banjo bolts
343-03 343-03-2 Thru the frame fitting 2” to -03 Fitting - 2pcs/pkg 332-10 10mm x 1.5 Banjo bolts
343-04 343-04-2 Thru the frame fitting 2” to -04 Fitting - 2pcs/pkg

440
