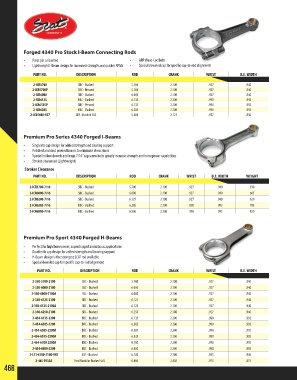

Page 468 - 2018 Master Catalog

Forged 4340 Pro Stock I-Beam Connecting Rods

• Press pin or bushed • ARP Wave-Loc Bolts
• Lightweight I-Beam design for increased strength and quicker RPMs • Special doweled cap for specific cap-to-rod alignment
PART NO. DESCRIPTION ROD CRANK WRIST B.E. WIDTH

2-ICR5700 SBC - Bushed 5.700 2.100 .927 .940
2-ICR5700P SBC - Pressed 5.700 2.100 .927 .940
2-ICR6000 SBC - Bushed 6.000 2.100 .927 .940
2-ICR6135 BBC - Bushed 6.135 2.200 .990 .992
2-ICR6135P BBC - Pressed 6.135 2.200 .990 .992
2-ICR6385 BBC - Bushed 6.385 2.200 .990 .992
2-ICR5400-927 SBF - Bushed 302 5.400 2.123 .927 .830

Premium Pro Series 4340 Forged I-Beams

• Single rib cap design for added strength and bearing support
• Polished and shot peened beams to eliminate stress risers
• Special hollow dowels and huge 7/16” cap screw bolts greatly increase strength and horsepower capabilities
• Stroker clearanced (Lightweight)
Stroker Clearance
PART NO. DESCRIPTION ROD CRANK WRIST B.E. WIDTH WEIGHT

2-ICR5700-7/16 SBC - Bushed 5.700 2.100 .927 .940 590
2-ICR6000-7/16 SBC - Bushed 6.000 2.100 .927 .940 605
2-ICR6200-7/16 SBC - Bushed 6.125 2.100 .927 .940 620
2-ICR6385-7/16 BBC - Bushed 6.385 2.200 .990 .992 785
2-ICR6800-7/16 BBC - Bushed 6.800 2.200 .990 .992 820

Premium Pro Sport 4340 Forged H-Beams

• Perfect for high horsepower, supercharged and nitrous applications
• Double rib cap design for added strength and bearing support
• H-Beam design is the strongest SCAT rod available
• Special doweled cap for specific cap-to-rod alignment
PART NO. DESCRIPTION ROD CRANK WRIST B.E. WIDTH

2-350-5700-2100 SBC - Bushed 5.700 2.100 .927 .940
2-350-6000-2100 SBC - Bushed 6.000 2.100 .927 .940
2-350-6000-2100A SBC - Bushed 6.000 2.100 .927 .940
2-350-6125-2100 SBC - Bushed 6.125 2.100 .927 .940
2-350-6125-2100A SBC - Bushed 6.125 2.100 .927 .940
2-350-6250-2100 SBC - Bushed 6.250 2.100 .927 .940
2-454-6135-2200 BBC - Bushed 6.135 2.200 .990 .992
2-454-6385-2200 BBC - Bushed 6.385 2.200 .990 .992
2-454-6385-2200A BBC - Bushed 6.385 2.200 .990 .992
2-454-6535-2200A BBC - Bushed 6.535 2.200 .990 .992
2-454-6700-2200A BBC - Bushed 6.700 2.200 .990 .992
2-454-6800-2200 BBC - Bushed 6.800 2.200 .990 .992
2-LS1-6100-2100-945 LS1 - Bushed 6.100 2.100 .945 .940
2-46L-5933A Ford Modular Bushed 4.6L 6.490 2.438 .975 .875
468
