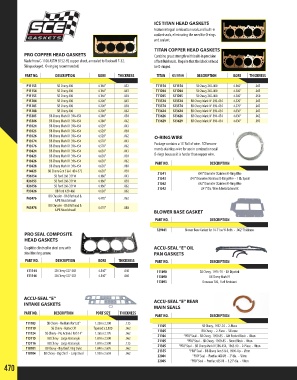

Page 470 - 2018 Master Catalog

ICS TITAN HEAD GASKETS
Feature integral combustion seals and built-in
coolant seals, eliminating the need for O-rings
and sealant.
TITAN COPPER HEAD GASKETS
PRO COPPER HEAD GASKETS Combine great strength with built-in precision
Made from C-1100 ASTM B152-92 copper sheet, annealed to Rockwell F-32. offset fluid seals. Require that the block or head
Skin packaged. O-ringing recommended. be O-ringed.

PART NO. DESCRIPTION BORE THICKNESS TITAN ICS TITAN DESCRIPTION BORE THICKNESS

P11153 SB Chevy 400 4.160” .032 T11154 S11154 SB Chevy 265-400 4.160” .043
P11154 SB Chevy 400 4.160” .043 T11204 S11204 SB Chevy 265-400 4.200” .043
P11155 SB Chevy 400 4.160” .050 T11205 S11205 SB Chevy 265-400 4.200” .050
P11204 SB Chevy 400 4.200” .043 T13524 S13524 BB Chevy Mark IV 396-454 4.520” .043
P11205 SB Chevy 400 4.200” .050 T13574 S13574 BB Chevy Mark IV 396-454 4.570” .043
P11208 SB Chevy 400 4.200” .062 T13624 S13624 BB Chevy Mark IV 396-454 4.630” .043
P13385 BB Chevy Mark IV 396-454 4.380” .050 T13626 S13626 BB Chevy Mark IV 396-454 4.630” .062
P13386 BB Chevy Mark IV 396-454 4.380” .062 T13629 S13629 BB Chevy Mark IV 396-454 4.630” .093
P13524 BB Chevy Mark IV 396-454 4.520” .043
P13525 BB Chevy Mark IV 396-454 4.520” .050
P13526 BB Chevy Mark IV 396-454 4.520” .062 O-RING WIRE
P13574 BB Chevy Mark IV 396-454 4.570” .043 Package contains a 15’ Roll of wire. SCE recom-
P13576 BB Chevy Mark IV 396-454 4.570” .062 mends stainless wire for use in combustion seal
P13624 BB Chevy Mark IV 396-454 4.630” .043
P13625 BB Chevy Mark IV 396-454 4.630” .050 O-rings because it is harder than copper wire.
P13626 BB Chevy Mark IV 396-454 4.630” .062 PART NO. DESCRIPTION
P13628 BB Chevy Mark IV 396-454 4.630” .080
P14625 BB Chevy Gen 5 & 6 454-572 4.630” .050 31541 .041” Diameter Stainless O-Ring Wire
P36154 SB Ford 260-351W 4.160” .043 31543
R36155 SB Ford 260-351W 4.160” .050 31562 .041” Diameter Stainless O-Ring Wire - 1 lb. Spool
.062” Diameter Stainless O-Ring Wire
R36156 SB Ford 260-351W 4.160” .062 31542 .041” Dia. Wire & Installation Kit
P35626 BB Ford 429-460 4.630” .062
BB Chrysler - BAE Fathead &
P63476 4.470” .062
AJPE Musclehead
BB Chrysler - BAE Fathead &
P63478 4.470” .080
AJPE Musclehead BLOWER BASE GASKET
PART NO. DESCRIPTION
329041 Blower Base Gasket for 14-71 w/ 8-Bolts - .062” Thickness
PRO SEAL COMPOSITE
HEAD GASKETS
Graphite clinched to steel core with ACCU-SEAL “E” OIL
steel fire ring armor. PAN GASKETS
PART NO. DESCRIPTION BORE THICKNESS PART NO. DESCRIPTION

511144 SB Chevy 327-383 4.140” .040 111090 SB Chevy, 1975-79 - LH Dipstick
511146 SB Chevy 327-383 4.140” .060 113090 BB Chevy Mark IV
113093 Donovan 700, Fuel Resistant

ACCU-SEAL “E” ACCU-SEAL “E” REAR
INTAKE GASKETS
MAIN SEALS
PART NO. DESCRIPTION PORT SIZE THICKNESS
PART NO. DESCRIPTION
111103 SB Chevy - Medium Port 23° 1.250 x 2.200 .125 11105 SB Chevy, 1957-74 - 2-Piece
111119 SB Chevy - Vortec CPI Tapered x 2.100 .062 11305
111124 SB Chevy - Pro Action / RHS 14° 1.365 x 2.195 .062 BB Chevy - 2-Piece - Silicone
113115 BB Chevy - Large Rectangle 1.810 x 2.500 .062 21104 “PRO” Seal - SB Chevy, 1959-85 - GM Rocket Block - Viton
21105
“PRO” Seal - SB Chevy, 1959-85 - Short Block - Viton
113116 BB Chevy - Large Rectangle 1.810 x 2.500 .125 21305
118101 BB Chevy - Big Chief / Big Duke 1.840 x 2.695 .062 “PRO” Seal - BB Chevy Mark IV 396-454, 1965-90 - 2-Piece - Viton
118104 BB Chevy - Big Chief - Large Oval 1.950 x 2.650 .062 21355 “PRO” Seal - BB Chevy Gen 5 & 6, 1990-Up - Viton
22804 “PRO” Seal - Pontiac 400 V8 - 3” dia. - Viton
22805 “PRO” Seal - Pontiac 455 V8 - 3.25” dia. - Viton
470
