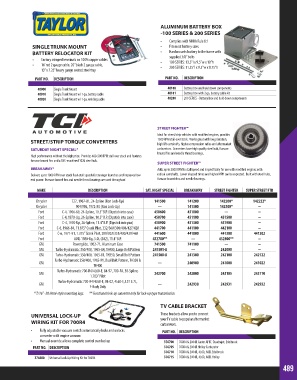

Page 489 - 2018 Master Catalog

ALUMINUM BATTERY BOX
-100 SERIES & 200 SERIES
• Complies with NHRA Rule 8:1
SINGLE TRUNK MOUNT • Fits most battery sizes
BATTERY RELOCATOR KIT • Hard mounts battery to the frame with
• Factory crimped terminals on 100% copper cables • supplied 3/8” bolts
100 SERIES: 13.5”l x 9.5”w x 10”h
• 16’ red 2 gauge cable, 20” black 2 gauge cable, • 200 SERIES: 11.25”l x 9.5”w x 8.75”h
13” x 7.25” heavy gauge coated steel tray
PART NO. DESCRIPTION PART NO. DESCRIPTION
48000 Single Trunk Mount 48100 Battery box and hold down components
48010 Single Trunk Mount w/ 1 ga. battery cable 48101 Battery box with 2 ga. battery cable kit
48020 Single Trunk Mount w/ 1 ga. welding cable 48200 200 SERIES - Battery box and hold down components

STREET FIGHTER™
Ideal for street/strip vehicles with modified engines, provides
STREET/STRIP TORQUE CONVERTERS 1500 RPM stall over stock. Works great with long duration,
high lift camshafts, higher compression ratios and aftermarket
SATURDAY NIGHT SPECIAL® carburetors. Converters have high quality steel hub, furnace
brazed fins and needle thrust bearings.
High performance without the high price. Provides 400-500 RPM stall over stock and features
furnace brazed fins and a CNC-machined 1026 steel hub.
SUPER STREET FIGHTER™
BREAKAWAY® Adds up to 2000 RPM to stall speed and is specifically for use with modified engines with
Delivers up to 1000 RPM over stock flash stall speeds for stronger launches and improved low radical camshafts. Lower elapsed times and higher MPH can be expected. Built with steel hubs,
end power. Furnace brazed fins and needle thrust bearings are used throughout furnace brazed fins and needle bearings.
MAKE DESCRIPTION SAT. NIGHT SPECIAL BREAKAWAY STREET FIGHTER SUPER STREET FTR

Chrysler 727, 1967-81, 24-Spline (Non Lock-Up) 141500 141200 142200* 142222*
Chrysler 904/998, 1972-80 (Non Lock-Up) --- 141300 142300* ---
Ford C-4, 1966-69, 24-Spline, 10.5” B.P. (Dipstick into case) 450600 451000 --- ---
Ford C-4, 1970-Up, 26-Spline, 10.5” B.P. (Dipstick into case) 450700 451100 451500 ---
Ford C-4, 1970-Up, 26-Spline, 11.4” B.P. (Dipstick into pan) 450900 451300 451900 ---
Ford C-6, 1966-84, 11.875” Crank Pilot, 332/360/390/406/427/428 441700 441100 442100 ---
Ford C-6, 1971-91, 1.375” Crank Pilot, 289/302/351/400/429/460 441600 441000 441300 441302
Ford AOD, 1980-Up, 5.0L (302), 11.4” B.P. 432700** --- 432800** ---
GM Powerglide, 1962-71, Aluminum Case 741500 741100 --- ---
GM Turbo-Hydramatic 350/400, 1965-84, TH400, Large Bolt Pattern 241501-A --- 242000 ---
GM Turbo-Hydramatic 350/400, 1965-81, TH350, Small Bolt Pattern 241500-A 241300 242100 242122
Turbo-Hydramatic 350/400, 1965-91, Dual Bolt Pattern, TH350 &
GM --- 240900 241000 241022
TH400
Turbo-Hydramatic 700-R4/4L60-E, 84-97, 700-R4, 30-Spline,
GM 242700 242800 243105 243110
1.703” Pilot
Turbo-Hydramatic 700-R4/4L60-E, 98-02, 4L60-E, LS1 5.7L,
GM --- 242938 242931 242932
F-Body Only
* 7/16” -20 Hemi-style mounting lugs. ** Functional lock-up converter only for lock-up type transmission.

TV CABLE BRACKET
UNIVERSAL LOCK-UP These brackets allow you to connect
WIRING KIT FOR 700R4 your TV cable to popular aftermarket
carburetors.
• Fully adjustable vacuum switch automatically locks and unlocks PART NO. DESCRIPTION
converter with engine vacuum
• Manual override allows complete control over lockup 376700 700R4 & 2004R Carter AFBT, Quadrajet, Edelbrock
PART NO. DESCRIPTION 376705 700R4 & 2004R Holley Carburetor
376710 700R4 & 2004R, 4L60, AOD, Edelbrock
376600 Universal Lock-Up Wiring Kit for 700R4 376715 700R4 & 2004R, 4L60, AOD, Holley
