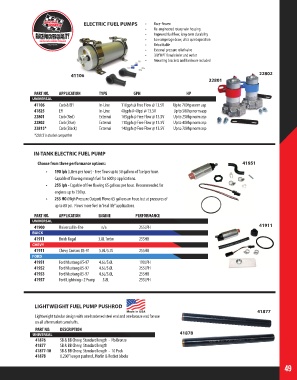

Page 49 - 2018 Master Catalog

ELECTRIC FUEL PUMPS • Race-Proven
• Re-engineered rotary vein housing
• Improved fuel flow, long-term durability
• Low amperage draw, ultra quiet operation
• Rebuildable
• External pressure relief valve
• 3/8” NPT female inlet and outlet
• Mounting brackets and hardware included

41106 22802
22801

PART NO. APPLICATION TYPE GPH HP
UNIVERSAL
41106 Carb & EFI In-Line 110gph @ Free Flow @ 13.5V Up to 700hp norm asp
41825 EFI In-Line 40gph @ 40psi @ 13.5V Up to 500hp norm asp
22801 Carb (Red) External 105gph @ Free Flow @ 13.5V Up to 250hp norm asp
22802 Carb (Blue) External 110gph @ Free Flow @ 13.5V Up to 400hp norm asp
22815* Carb (Black) External 140gph @ Free Flow @ 13.5V Up to 700hp norm asp
*22815 is alcohol compatible

IN-TANK ELECTRIC FUEL PUMP
Choose from three performance options: 41951
• 190 lph (Liters per hour) - Free flows up to 50 gallons of fuel per hour.
Capable of flowing enough fuel for 600hp applications.
• 255 lph - Capable of free flowing 65 gallons per hour. Recommended for
engines up to 750hp.
• 255 HO (High Pressure Output) Flows 65 gallons an hour, but at pressures of
up to 80 psi. Flows more fuel in “real life” applications.

PART NO. APPLICATION ENGINE PERFORMANCE
UNIVERSAL
41900 Universal In-line n/a 255LPH 41911
BUICK
41911 Buick Regal 3.8L Turbo 255HO
CHEVY
41911 Chevy Camaro 85-91 5.0L/5.7L 255HO
FORD
41951 Ford Mustang 85-97 4.6L/5.0L 190LPH
41952 Ford Mustang 85-97 4.6L/5.0L 255LPH
41953 Ford Mustang 85-97 4.6L/5.0L 255HO
41957 Ford Lightning - 2 Pump 5.8L 255LPH

LIGHTWEIGHT FUEL PUMP PUSHROD
41877
Lightweight tubular design with one hardened steel end and one bronze end for use
on all aftermarket camshafts.
PART NO. DESCRIPTION
UNIVERSAL 41878
41876 SB & BB Chevy, Standard length - No Bronze
41877 SB & BB Chevy, Standard length
41877-10 SB & BB Chevy, Standard length - 10 Pack
41878 0.200” longer pushrod, Merlin & Rocket blocks

49
