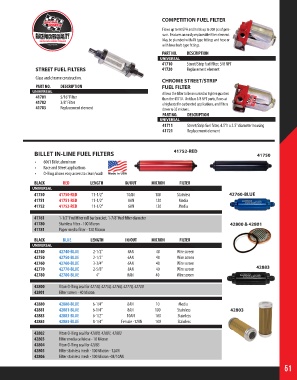

Page 51 - 2018 Master Catalog
P. 51
COMPETITION FUEL FILTER
Flows up to 90 GPH and holds up to 200 psi of pres-
sure. Features an easily replaceable filter element.
May be plumbed with AN type fittings and hose or
with hose barb type fittings.
PART NO. DESCRIPTION
UNIVERSAL
41710 Street/Strip fuel filter, 3/8 NPT
STREET FUEL FILTERS 41720 Replacement element
Glass and chrome construction.
CHROME STREET/STRIP
PART NO. DESCRIPTION FUEL FILTER
UNIVERSAL Allows the filter to be mounted in tighter quarters
41701 5/16” Filter than the 41710. Unit has 3/8 NPT ports, flows at
41702 3/8” Filter a high rate for carbureted applications, and filters
41703 Replacement element down to 35 microns.
PART NO. DESCRIPTION
UNIVERSAL
41711 Street/Strip fuel filter, 4.5”h x 2.5” diameter housing
41721 Replacement element
BILLET IN-LINE FUEL FILTERS 41752-RED 41750
• 6061 Billet aluminum
• Race and Street applications
• O-Ring allows easy access to clean/wash
BLACK RED LENGTH IN/OUT MICRON FILTER
UNIVERSAL
41750 41750-RED 11-1/2” 10AN 100 Stainless 42760-BLUE
41751 41751-RED 11-1/2” 8AN 120 Media
41752 41752-RED 11-1/2” 6AN 120 Media
41761 1-1/2” Fuel filter roll bar bracket, 1-7/8” fuel filter diameter
41780 Stainless filter - 100 Micron 42800 & 42801
41781 Paper media filter - 120 Micron
BLACK BLUE LENGTH IN/OUT MICRON FILTER
UNIVERSAL
42740 42740-BLUE 2-1/2” 4AN 40 Wire screen
42750 42750-BLUE 2-1/2” 6AN 40 Wire screen
42760 42760-BLUE 3-3/4” 6AN 40 Wire screen
42770 42770-BLUE 2-5/8” 8AN 40 Wire screen 42883
42780 42780-BLUE 4” 8AN 40 Wire screen
42800 Viton O-Ring seal for 42740, 42750, 42760, 42770, 42780
42801 Filter screen - 40 Micron
42880 42880-BLUE 6-1/4” 8AN 10 Media
42881 42881-BLUE 6-1/4” 8AN 100 Stainless 42803
42883 42883-BLUE 6-1/2” 10AN 100 Stainless
42885 42885-BLUE 8-1/4” Female -12AN 100 Stainless
42802 Viton O-Ring seal for 42880, 42881, 42883
42803 Filter media cellulose - 10 Micron
42804 Viton O-Ring seal for 42885
42805 Filter stainless mesh - 100 Micron - 12AN
42806 Filter stainless mesh - 100 Micron -08/10AN
51
