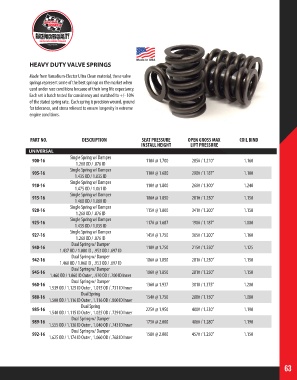

Page 63 - 2018 Master Catalog

HEAVY DUTY VALVE SPRINGS

Made from Vanadium-Elector Ultra Clean material, these valve
springs represent some of the best springs on the market when
used under race conditions because of their long life expectancy.
Each set is batch tested for consistency and matched to +/- 10%
of the stated spring rate. Each spring is precision wound, ground
for tolerance, and stress relieved to ensure longevity in extreme
engine conditions.

PART NO. DESCRIPTION SEAT PRESSURE OPEN GROSS MAX COIL BIND
INSTALL HEIGHT LIFT PRESSURE
UNIVERSAL
Single Spring w/ Damper
900-16 110# @ 1.700 285# / 1.210” 1.160
1.260 OD / .876 ID
Single Spring w/ Damper
905-16 110# @ 1.680 290# / 1.187” 1.100
1.435 OD / 1.035 ID
Single Spring w/ Damper
910-16 110# @ 1.800 260# / 1.300” 1.240
1.475 OD / 1.061 ID
Single Spring w/ Damper
915-16 106# @ 1.850 281# / 1.250” 1.150
1.460 OD / 1.060 ID
Single Spring w/ Damper
920-16 115# @ 1.800 341# / 1.200” 1.150
1.260 OD / .876 ID
Single Spring w/ Damper
925-16 117# @ 1.687 190# / 1.187” 1.000
1.435 OD / 1.035 ID
Single Spring w/ Damper
927-16 145# @ 1.750 365# / 1.200” 1.160
1.260 OD / .876 ID
Dual Spring w/ Damper
940-16 110# @ 1.750 215# / 1.250” 1.125
1.437 OD / 1.080 ID , .953 OD / .697 ID
Dual Spring w/ Damper
942-16 106# @ 1.850 281# / 1.250” 1.150
1.460 OD / 1.060 ID , .953 OD / .697 ID
Dual Spring w/ Damper
945-16 106# @ 1.850 281# / 1.250” 1.150
1.460 OD / 1.060 ID Outer , .970 OD / .700 ID Inner
Dual Spring w/ Damper
960-16 136# @ 1.937 301# / 1.375” 1.200
1.539 OD / 1.125 ID Outer , 1.015 OD / .731 ID Inner
Dual Spring
980-16 154# @ 1.750 208# / 1.150” 1.080
1.500 OD / 1.116 ID Outer , 1.116 OD / .800 ID Inner
Dual Spring
985-16 225# @ 1.950 400# / 1.230” 1.190
1.540 OD / 1.115 ID Outer , 1.025 OD / .729 ID Inner
Dual Spring w/ Damper
989-16 175# @ 2.000 406# / 1.280” 1.190
1.555 OD / 1.130 ID Outer , 1.040 OD / .743 ID Inner
Dual Spring w/ Damper
992-16 158# @ 2.000 457# / 1.250” 1.150
1.625 OD / 1.174 ID Outer , 1.060 OD / .768 ID Inner
