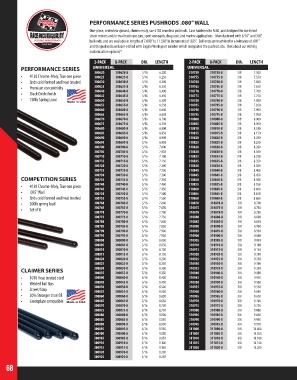

Page 68 - 2018 Master Catalog

PERFORMANCE SERIES PUSHRODS .080” WALL
One-piece, centerless-ground, chrome moly, sae 4130 seamless pushrods. Case hardened to Rc60, and designed for use in hot
street motors and/or oval track race cars, sport compacts, drag race, and marine applications. Manufactured with 5/16” and 3/8”
ball ends, and are available in lengths of 7.000” to 11.550” in increments of .025”. Ball ends are machined to a tolerance of .001”
and the pushrods are laser-etched with Engine Works part number which designates the pushrod size. (Ask about our etching
customization options)*
2-PACK 8-PACK DIA. LENGTH 2-PACK 8-PACK DIA. LENGTH
PERFORMANCE SERIES UNIVERSAL UNIVERSAL
• 4130 Chrome-Moly, True one piece 300620 300620-8 5/16 6.200 310750 310750-8 3/8 7.500
300625
310755-8
3/8
7.550
310755
300625-8
5/16
6.250
• Ends cold formed and heat treated 300630 300630-8 5/16 6.300 310760 310760-8 3/8 7.600
• Premium concentricity 300635 300635-8 5/16 6.350 310765 310765-8 3/8 7.650
• Black Oxide finish 300640 300640-8 5/16 6.400 310770 310770-8 3/8 7.700
6.450
300645
300645-8
5/16
3/8
7.750
310775-8
310775
• 750lb Spring Load 300650 300650-8 5/16 6.500 310780 310780-8 3/8 7.800
300655 300655-8 5/16 6.550 310785 310785-8 3/8 7.850
300660 300660-8 5/16 6.600 310790 310790-8 3/8 7.900
300665 300665-8 5/16 6.650 310795 310795-8 3/8 7.950
300670 300670-8 5/16 6.700 310800 310800-8 3/8 8.000
300675 300675-8 5/16 6.750 310805 310805-8 3/8 8.050
300680 300680-8 5/16 6.800 310810 310810-8 3/8 8.100
300685 300685-8 5/16 6.850 310815 310815-8 3/8 8.150
300690 300690-8 5/16 6.900 310820 310820-8 3/8 8.200
300695 300695-8 5/16 6.950 310825 310825-8 3/8 8.250
300700 300700-8 5/16 7.000 310828 310828-8 3/8 8.280
300705 300705-8 5/16 7.050 310830 310830-8 3/8 8.300
300710 300710-8 5/16 7.100 310833 310833-8 3/8 8.330
300715 300715-8 5/16 7.150 310835 310835-8 3/8 8.350
300720 300720-8 5/16 7.200 310838 310838-8 3/8 8.380
300725 300725-8 5/16 7.250 310840 310840-8 3/8 8.400
300730 300730-8 5/16 7.300 310845 310845-8 3/8 8.450
COMPETITION SERIES 300735 300735-8 5/16 7.350 310850 310850-8 3/8 8.500
• 4130 Chrome-Moly, True one piece 300740 300740-8 5/16 7.400 310855 310855-8 3/8 8.550
300745-8
300745
7.450
5/16
310860-8
3/8
8.600
310860
• .065” Wall 300750 300750-8 5/16 7.500 310865 310865-8 3/8 8.650
• Ends cold formed and heat treated 300755 300755-8 5/16 7.550 310868 310868-8 3/8 8.680
• 500lb spring load 300760 300760-8 5/16 7.600 310870 310870-8 3/8 8.700
• Set of 8 300765 300765-8 5/16 7.650 310875 310875-8 3/8 8.750
300770 300770-8 5/16 7.700 310878 310878-8 3/8 8.780
300775 300775-8 5/16 7.750 310880 310880-8 3/8 8.800
300780 300780-8 5/16 7.800 310885 310885-8 3/8 8.850
300785 300785-8 5/16 7.850 310890 310890-8 3/8 8.900
300790 300790-8 5/16 7.900 310895 310895-8 3/8 8.950
300795 300795-8 5/16 7.950 310900 310900-8 3/8 9.000
300800 300800-8 5/16 8.000 310905 310905-8 3/8 9.050
300805 300805-8 5/16 8.050 310910 310910-8 3/8 9.100
300810 300810-8 5/16 8.100 310915 310915-8 3/8 9.150
300815 300815-8 5/16 8.150 310920 310920-8 3/8 9.200
300820 300820-8 5/16 8.200 310925 310925-8 3/8 9.250
300825 300825-8 5/16 8.250 310930 310930-8 3/8 9.300
CLAIMER SERIES 300830 300830-8 5/16 8.300 310935 310935-8 3/8 9.350
310940-8
5/16
8.350
9.400
310940
3/8
300835-8
300835
• 1010 Heat treated steel 300840 300840-8 5/16 8.400 310945 310945-8 3/8 9.450
• Welded ball tips 300845 300845-8 5/16 8.450 310950 310950-8 3/8 9.500
• Street/Strip 300850 300850-8 5/16 8.500 310955 310955-8 3/8 9.550
300855
310960-8
300855-8
310960
3/8
5/16
8.550
9.600
• 30% Stronger than OE 300860 300860-8 5/16 8.600 310965 310965-8 3/8 9.650
• Guideplate compatible 300865 300865-8 5/16 8.650 310970 310970-8 3/8 9.700
300870 300870-8 5/16 8.700 310975 310975-8 3/8 9.750
300875 300875-8 5/16 8.750 310980 310980-8 3/8 9.800
300880 300880-8 5/16 8.800 310985 310985-8 3/8 9.850
300885 300885-8 5/16 8.850 310990 310990-8 3/8 9.900
300890 300890-8 5/16 8.900 310995 310995-8 3/8 9.950
300895 300895-8 5/16 8.950 311000 311000-8 3/8 10.000
300900 300900-8 5/16 9.000 311005 311005-8 3/8 10.050
300905 300905-8 5/16 9.050 311010 311010-8 3/8 10.100
300910 300910-8 5/16 9.100 311015 311015-8 3/8 10.150
300915 300915-8 5/16 9.150 311020 311020-8 3/8 10.200
300920 300920-8 5/16 9.200
300925 300925-8 5/16 9.250
68
