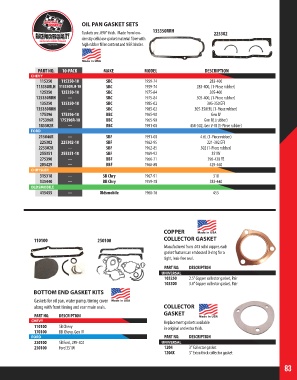

Page 83 - 2018 Master Catalog

OIL PAN GASKET SETS

Gaskets are .090” thick. Made from low- 135350RRH 225302
density cellulose gasket material fiber with
high rubber filler content and NBR binder.

PART NO. 10-PACK MAKE MODEL DESCRIPTION
CHEVY
115350 115350-10 SBC 1959-74 283-400
115350RLH 115350RLH-10 SBC 1959-74 283-400, (1-Piece rubber)
125350 125350-10 SBC 1975-84 305-400
125350RRH --- SBC 1975-84 305-400, (1-Piece rubber)
135350 135350-10 SBC 1985-02 305-350 EFI
135350RRH --- SBC 1985-02 305-350EFI, (1-Piece rubber)
175396 175396-10 BBC 1965-90 Gen IV
175396R 175396R-10 BBC 1965-90 Gen IV, (rubber)
185502R --- BBC 1991-00 454-502, Gen V-VI (1-Piece rubber)
FORD
215046R --- SBF 1991-08 4.6L (1-Piece rubber)
225302 225302-10 SBF 1962-95 221-302 EFI
225302R --- SBF 1962-85 302 (1-Piece rubber)
255351 255351-10 SBF 1969-92 351W
275390 --- BBF 1966-71 390-428 FE
285429 --- BBF 1968-88 429-460
CHRYSLER
315318 --- SB Chry 1967-91 318
335440 --- BB Chry 1959-78 383-440
OLDSMOBILE
415455 --- Oldsmobile 1968-76 455

COPPER
110100 250100 COLLECTOR GASKET
Manufactured from .043 solid copper, each
gasket features an embossed O-ring for a
tight, leak-free seal.
PART NO. DESCRIPTION
UNIVERSAL
103250 2.5” Copper collector gasket, Pair
103300 3.0” Copper collector gasket, Pair
BOTTOM END GASKET KITS

Gaskets for oil pan, water pump, timing cover
along with front timing and rear main seals. COLLECTOR
PART NO. DESCRIPTION GASKET
CHEVY Replacement gaskets available
110100 SB Chevy in original and extra thick.
170100 BB Chevy, Gen IV
FORD PART NO. DESCRIPTION
220100 SB Ford, 289-302 UNIVERSAL
250100 Ford 351W 1204 3” Collector gasket
1204X 3” Extra thick collector gasket

83
