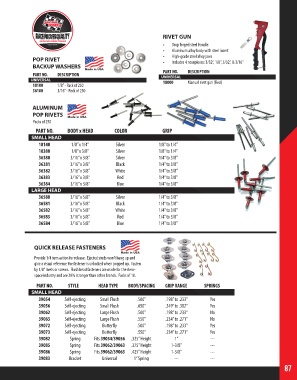

Page 87 - 2018 Master Catalog

RIVET GUN

• Drop forged steel handle
• Aluminum alloy body with steel insert
• High-grade steel alloy jaws
POP RIVET • Includes 4 nosepieces: 3/32”, 1/8”, 5/32”, & 3/16”
BACKUP WASHERS
PART NO.
PART NO. DESCRIPTION UNIVERSAL DESCRIPTION
UNIVERSAL 18000 Manual rivet gun (Red)
18100 1/8” - Pack of 250
36100 3/16” - Pack of 250

ALUMINUM
POP RIVETS

Packs of 250
PART NO. BODY x HEAD COLOR GRIP
SMALL HEAD
18140 1/8” x 1/4” Silver 1/8” to 1/4”
18380 1/8” x 3/8” Silver 1/8” to 1/4”
36380 3/16” x 3/8” Silver 1/4” to 3/8”
36381 3/16” x 3/8” Black 1/4” to 3/8”
36382 3/16” x 3/8” White 1/4” to 3/8”
36383 3/16” x 3/8” Red 1/4” to 3/8”
36384 3/16” x 3/8” Blue 1/4” to 3/8”
LARGE HEAD
36580 3/16” x 5/8” Silver 1/4” to 3/8”
36581 3/16” x 5/8” Black 1/4” to 3/8”
36582 3/16” x 5/8” White 1/4” to 3/8”
36583 3/16” x 5/8” Red 1/4” to 3/8”
36584 3/16” x 5/8” Blue 1/4” to 3/8”

QUICK RELEASE FASTENERS

Provide 1/4 turn action for release. Ejected studs won’t hang up and
give a visual reference the fastener is unlocked when popped up. Fasten
by 1/8” rivets or screws. Flush head fasteners are made for the Aero-
space industry and are 20% stronger than other brands. Packs of 10.

PART NO. STYLE HEAD TYPE BODY/SPACING GRIP RANGE SPRINGS
SMALL HEAD
39054 Self-ejecting Small Flush .500” .198” to .233” Yes
39056 Self-ejecting Small Flush .650” .349” to .382” Yes
39062 Self-ejecting Large Flush .500” .198” to .233” No
39063 Self-ejecting Large Flush .550” .234” to .271” No
39072 Self-ejecting Butterfly .500” .198” to .233” Yes
39073 Self-ejecting Butterfly .550” .234” to .271” Yes
39082 Spring Fits 39054/39056 .325” Height 1” ---
39085 Spring Fits 39062/39063 .375” Height 1-3/8” ---
39086 Spring Fits 39062/39063 .425” Height 1-3/8” ---
39083 Bracket Universal 1” Spring --- ---
