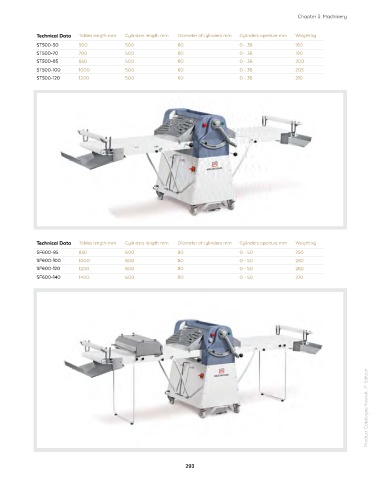

Page 293 - Products Catalogue First Edition 2021
P. 293
Chapter 3: Machinery
SHEETERS Technical Data Tables length mm Cylinders length mm Diameter of cylinders mm Cylinders aperture mm Weight kg
500
500
ST500-50
180
0 - 36
60
The manual roller is ideal for rolling all kinds of pasta. It is intended for pastry and bakery laboratories of small and ST500-70 700 500 60 0 - 36 190
medium size, hotels and restaurants. It is characterized by a simple and reliable construction, and for ease of cleaning and ST500-85 850 500 60 0 - 36 200
maintenance. It is available in bench and floor versions, with carpet widths of 500 and 600mm. ST500-100 1000 500 60 0 - 36 205
ST500-120 1200 500 60 0 - 36 210
SB - ST - SF
Technical Data Tables length mm Cylinders length mm Diameter of cylinders mm Cylinders aperture mm Weight kg
SB500-50 500 500 60 0 - 36 150
SB500-70 700 500 60 0 - 36 160
SB500-85 850 500 60 0 - 36 170
SB500-100 1000 500 60 0 - 36 175
SB500-120 1200 500 60 0 - 36 180
Technical Data Tables length mm Cylinders length mm Diameter of cylinders mm Cylinders aperture mm Weight kg
SF600-85 850 600 80 0 - 50 250
SF600-100 1000 600 80 0 - 50 250
SF600-120 1200 600 80 0 - 50 260
SF600-140 1400 600 80 0 - 50 270
Product Catalogue Kuwait -1 st Edition
292 293
