Page 313 - Products Catalogue First Edition 2021

Chapter 3: Machinery

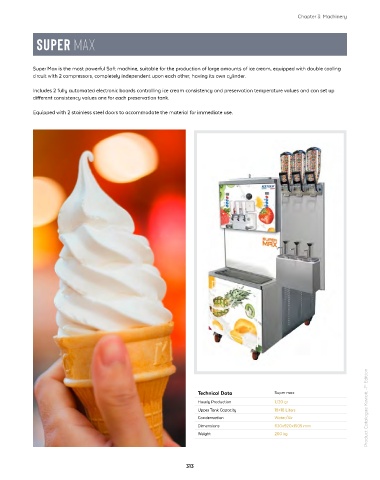

SOFT HAPPY / SMILE SUPER MAX

Compact version of the soft machines manufactured in several models: Super Max is the most powerful Soft machine, suitable for the production of large amounts of ice cream, equipped with double cooling
HAPPY: 1 or 3 tastes counter machines with or without a pump. circuit with 2 compressors, completely independent upon each other, having its own cylinder.
SMILE: 3 tastes machines installed on the floor with or without a pump.
Includes 2 fully automated electronic boards controlling ice cream consistency and preservation temperature values and can set up
different consistency values one for each preservation tank.
Technical Data Hourly Production Upper Tank Capacity Condensation Dimensions Weight
Equipped with 2 stainless steel doors to accommodate the material for immediate use.
HAPPY 1P 300 gr 11 Liters Water/Air 430 x 600 x 800 mm 107 kg
HAPPY 3P 350 gr 11+11 Liters Water/Air 530 x 640 x 850 mm 124 kg
SMILE 3P 520 gr 11+11 Liters Water/Air 500 x 640 x 1480 mm 198 kg

Product Catalogue Kuwait -1 st Edition

Technical Data Super max
Hourly Production 1,120 gr
Upper Tank Capacity 18+18 Liters
Condensation Water/Air
Dimensions 630x920x1505 mm
Weight 260 kg

312 313
