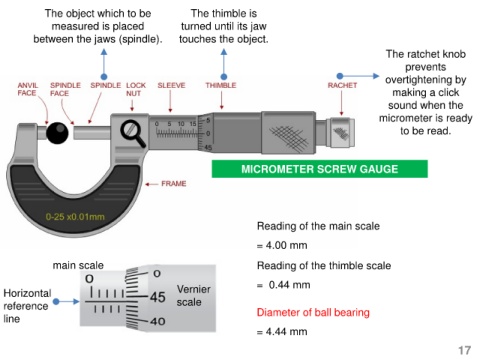

The object which to be The thimble is
measured is placed turned until its jaw
between the jaws (spindle). touches the object.
The ratchet knob
prevents
overtightening by
making a click
sound when the
micrometer is ready
to be read.
MICROMETER SCREW GAUGE
Reading of the main scale
= 4.00 mm
main scale Reading of the thimble scale
Horizontal Vernier = 0.44 mm
reference scale Diameter of ball bearing
line
= 4.44 mm
