P. 111

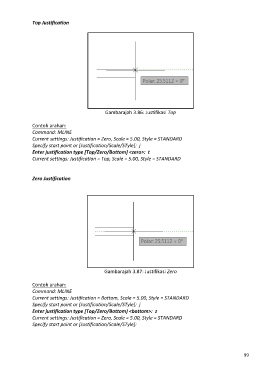

Top Justification
Gambarajah 3.86: Justifikasi Top
Contoh arahan:
Command: MLINE
Current settings: Justification = Zero, Scale = 5.00, Style = STANDARD
Specify start point or [Justification/Scale/STyle]: j
Enter justification type [Top/Zero/Bottom] <zero>: t
Current settings: Justification = Top, Scale = 5.00, Style = STANDARD
Zero Justification
Gambarajah 3.87: Justifikasi Zero
Contoh arahan:
Command: MLINE
Current settings: Justification = Bottom, Scale = 5.00, Style = STANDARD
Specify start point or [Justification/Scale/STyle]: j
Enter justification type [Top/Zero/Bottom] <bottom>: z
Current settings: Justification = Zero, Scale = 5.00, Style = STANDARD
Specify start point or [Justification/Scale/STyle]:
