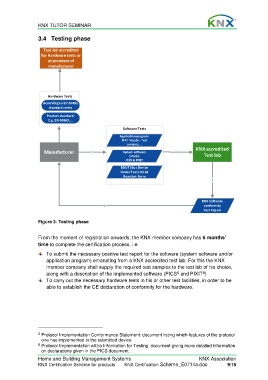

Page 9 - KNX Certification Scheme for products

KNX TUTOR SEMINAR

3.4 Testing phase

Test lab accredited
for Hardware tests or
at premises of
manufacturer

Hardware Tests
According to EN 50491
standard series
Product standard:
E.g. EN 60669,...
Software Tests
Application program:
PIXIT Header, Test
samples,...
Manufacturer 1 System software KNX accredited
(Stack): Test lab
PICS & PIXIT
BDUT (Bus Device
Under Test) Initial
Reaction Form
2

KNX Software
2 conformity
Test Report

Figure 3: Testing phase

From the moment of registration onwards, the KNX member company has 6 months’
time to complete the certification process, i.e.
To submit the necessary positive test report for the software (system software and/or
application program) emanating from a KNX accredited test lab. For this the KNX
member company shall supply the required test samples to the test lab of his choice,
5
6
along with a description of the implemented software (PICS and PIXIT )
To carry out the necessary hardware tests in his or other test facilities, in order to be
able to establish the CE declaration of conformity for the hardware.

5 Protocol Implementation Conformance Statement: document listing which features of the protocol
one has implemented in the submitted device
6 Protocol Implementation eXtra Information for Testing: document giving more detailed information
on declarations given in the PICS document
Home and Building Management Systems KNX Association
KNX Certification Scheme for products KNX Certification Scheme_E0714a.doc 9/15
